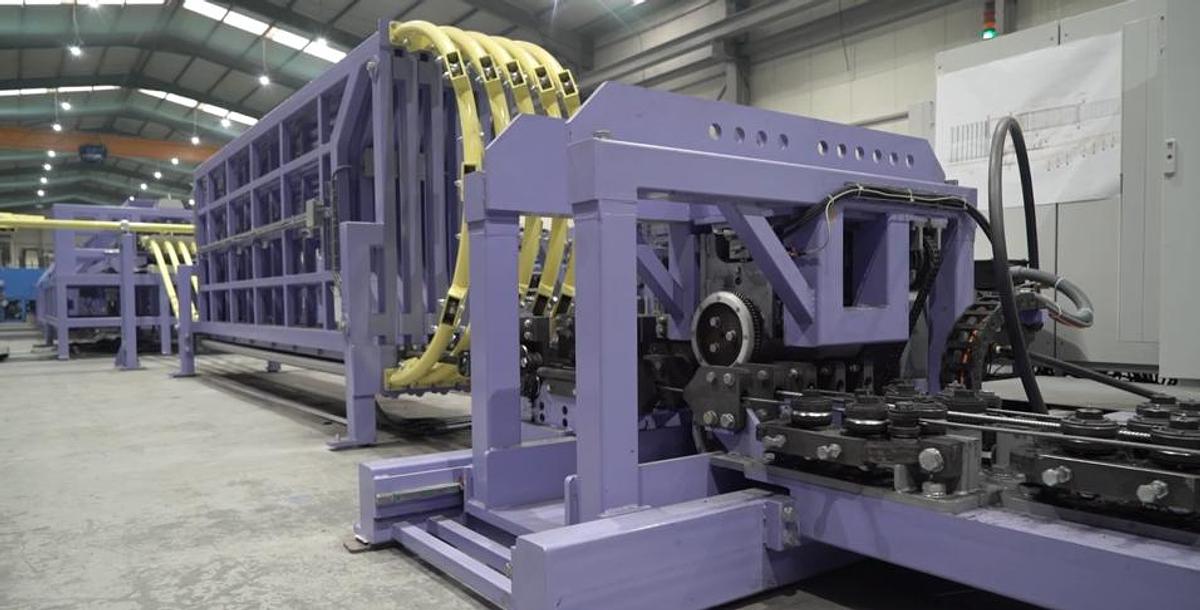

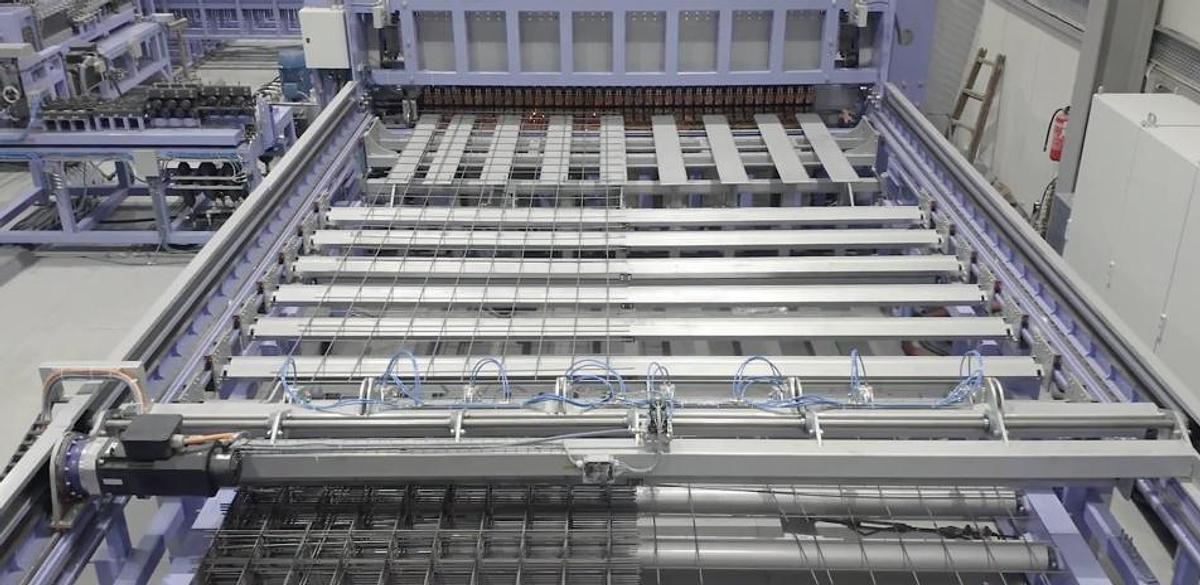

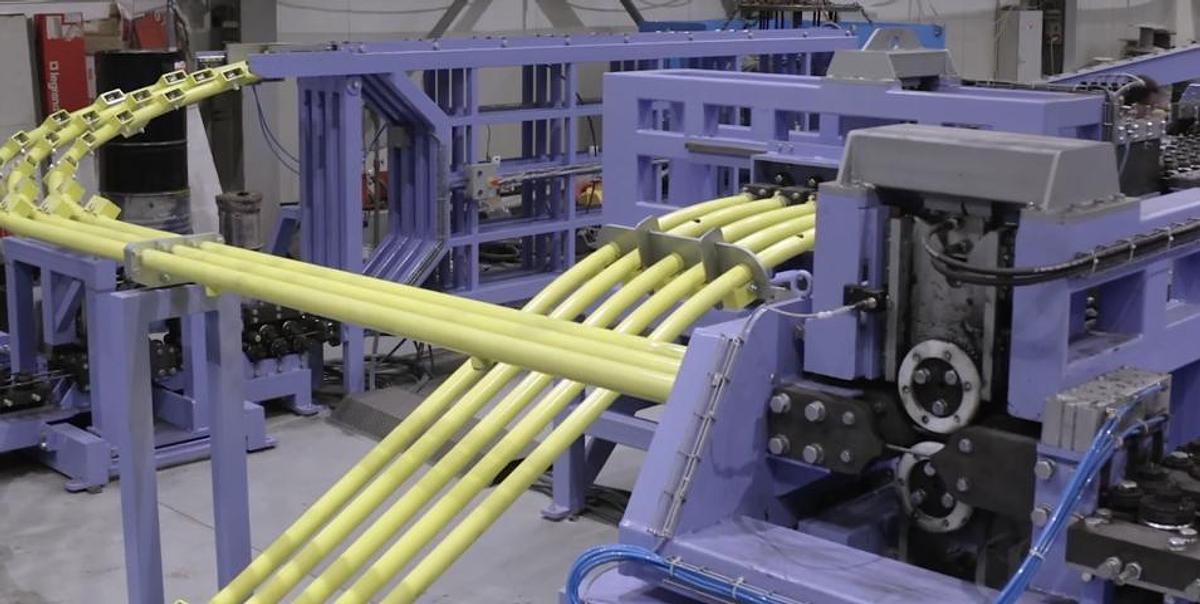

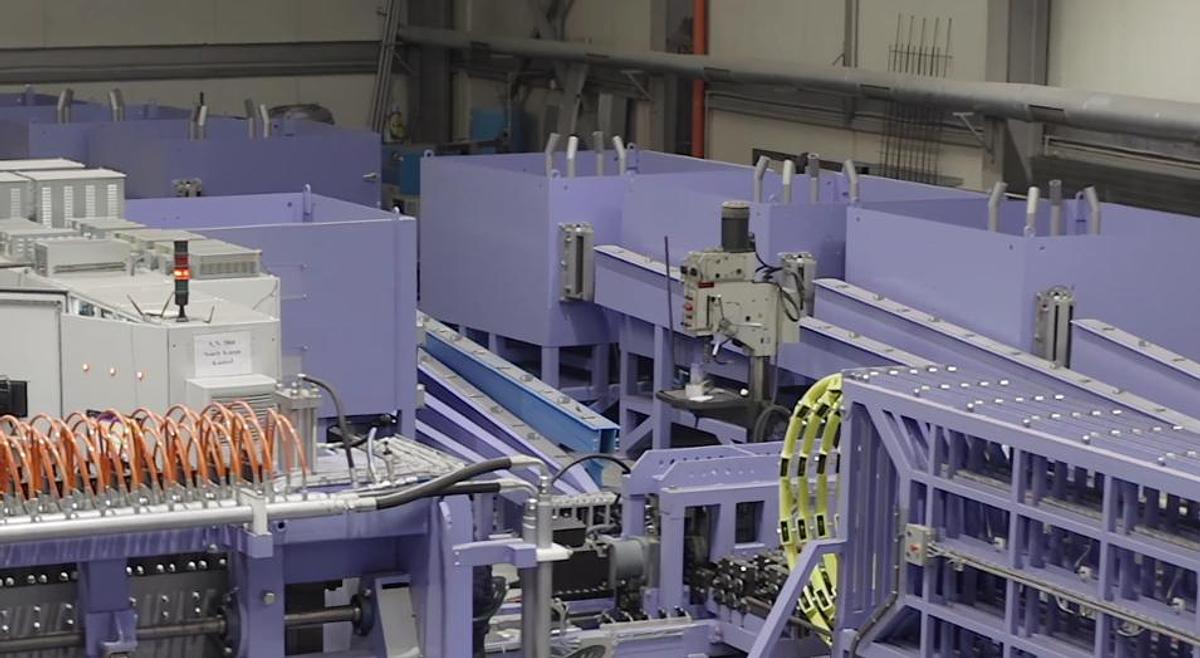

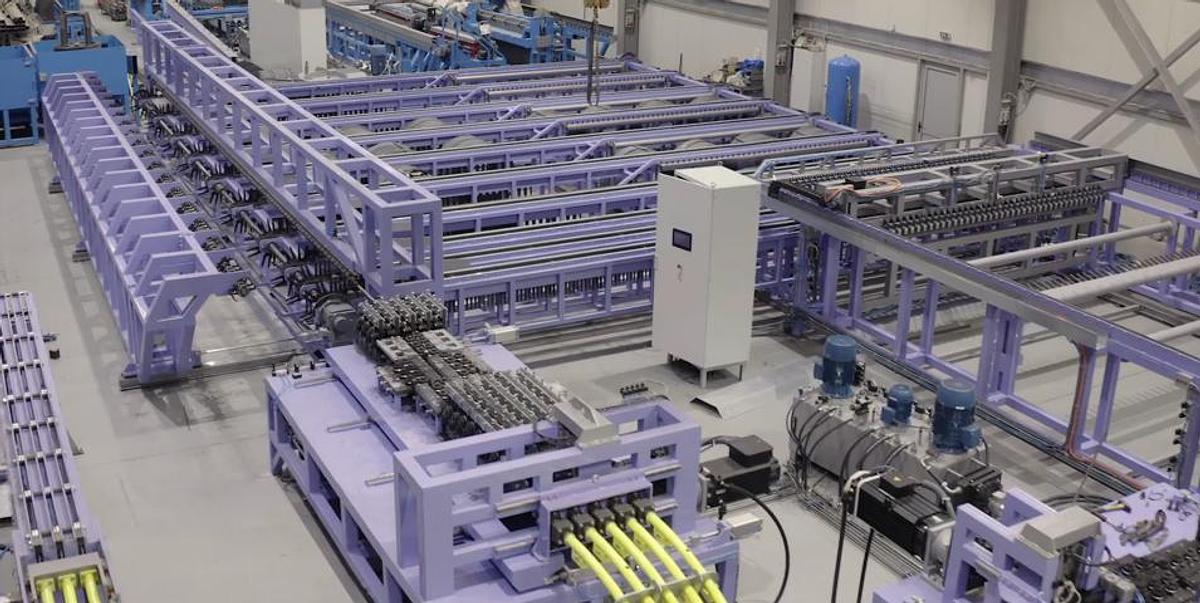

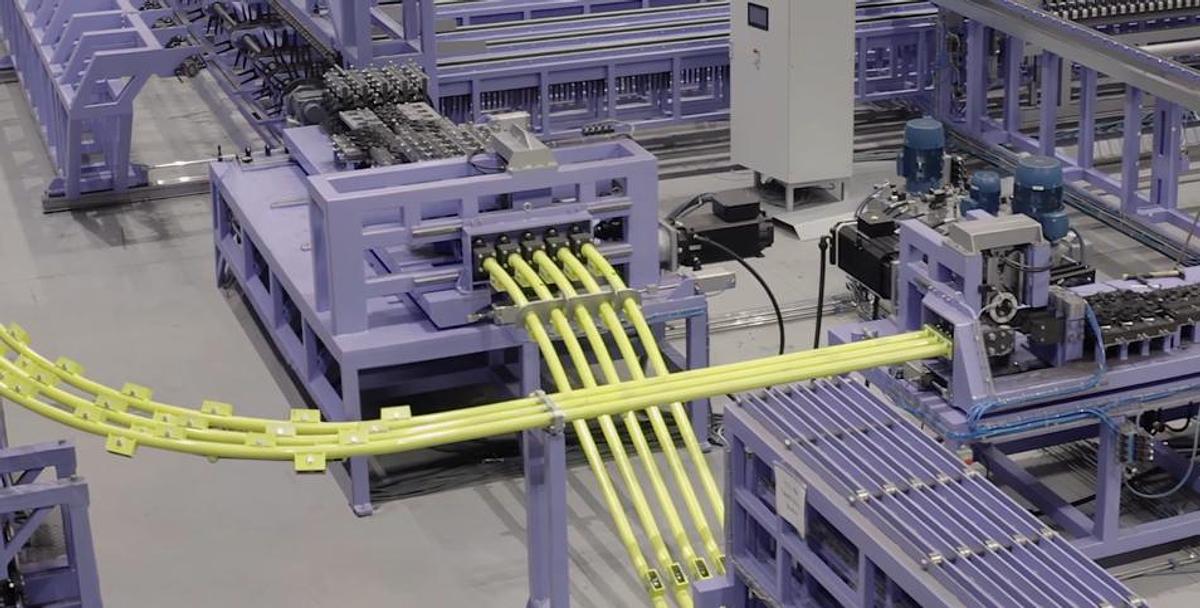

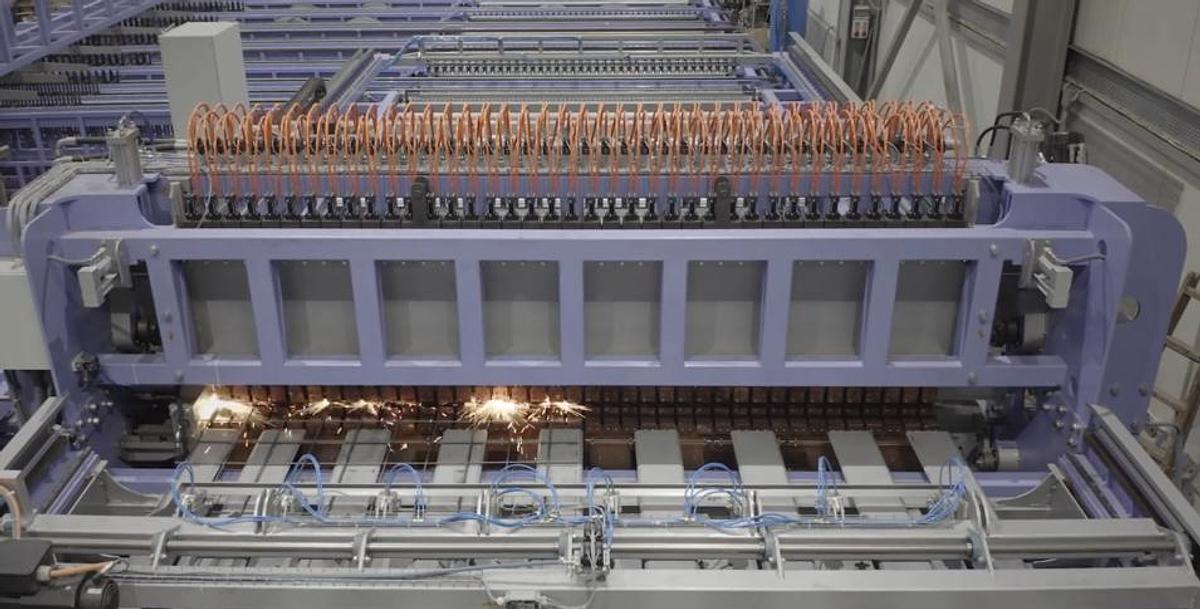

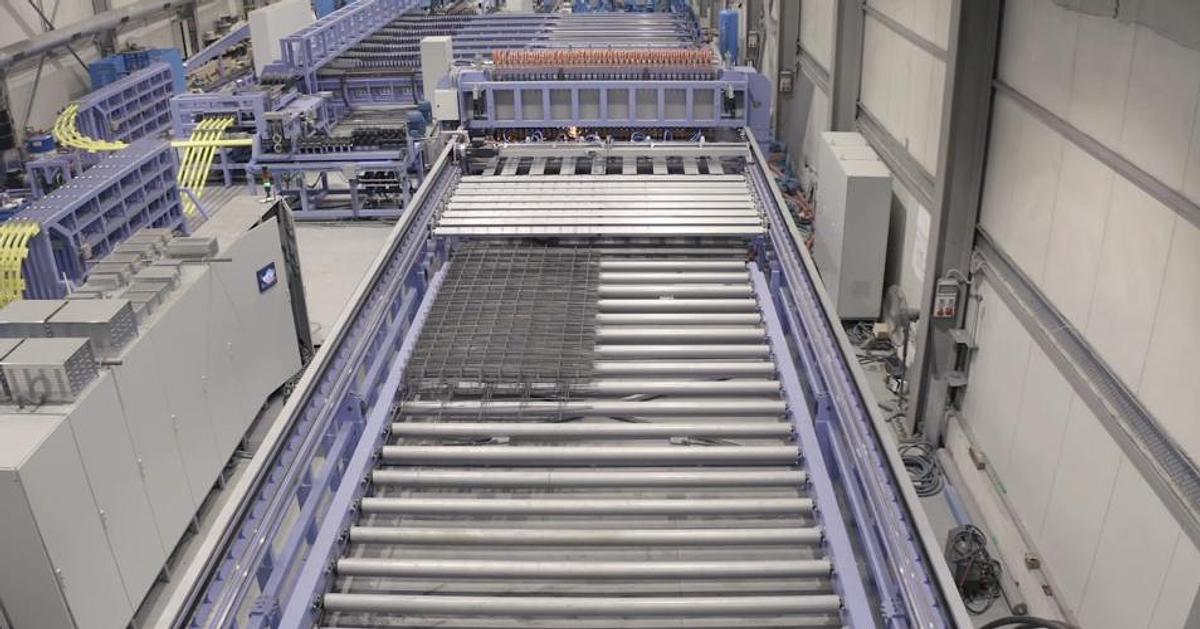

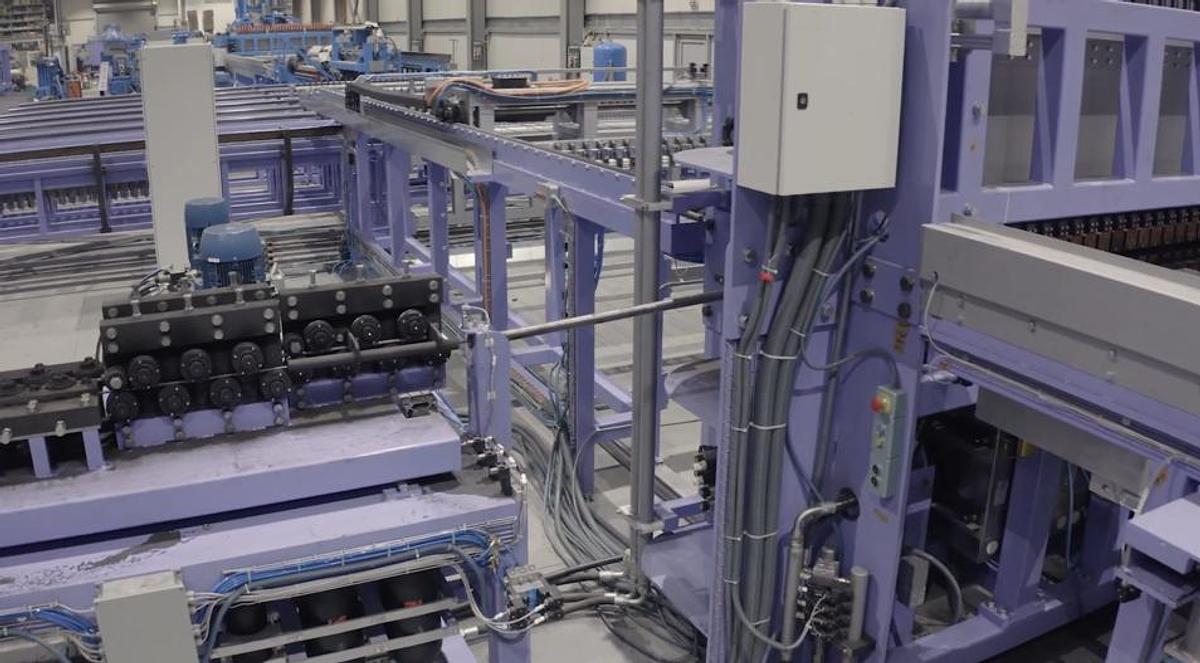

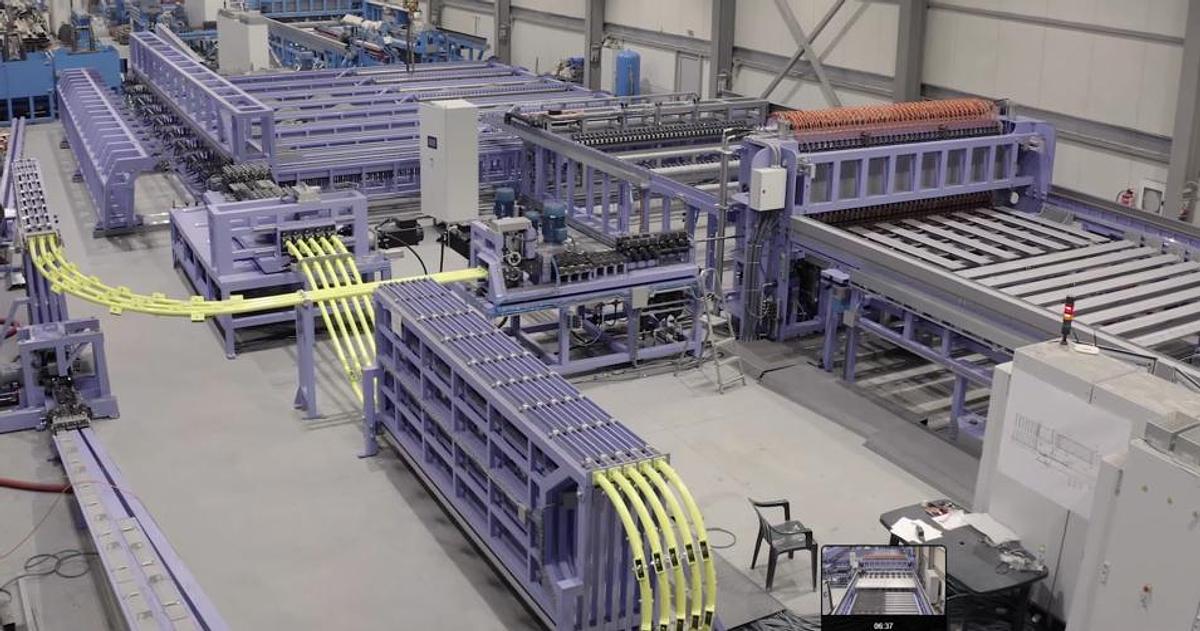

2020 TILLOS Superweld

High capacity, Fully Automatic Engineered Mesh Welding Plant

SUPERWELD

Longitudinal wires diameter 6.0 mm – 13.0mm*

Number of longitudinal wires 39

Cross wire diameter: 6.0 mm – 13.0 mm*

*Rebar real diameter Φ must not exceed 13mm !!

Mesh width: 3.800 mm

Mesh length min 1.000 mm – max 10.000 mm

Gsbr E N E Sswig Exe Isbr

Longitudinal wires pitch at 100mm

Cross wire Step min 50mm

Cross wire overhang 50mm – 150mm adjustable

Power transformer welding 10 x 420 kVA

Welding Speed of the machine at wire thickness 6x6mm, mesh spacing 100x100mm and 2150mm will reach 130 strokes.

Line was in production only 3 years. Curently production is stoped.
