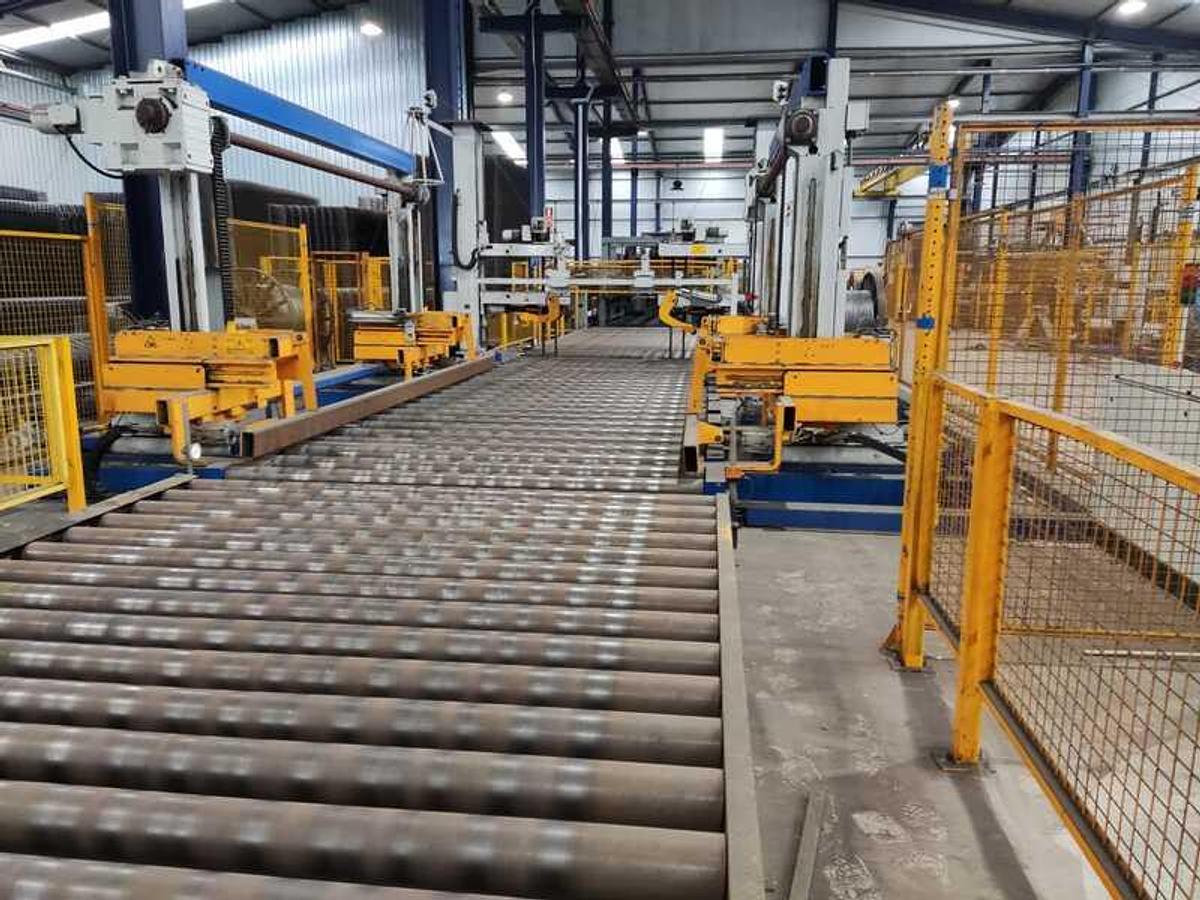

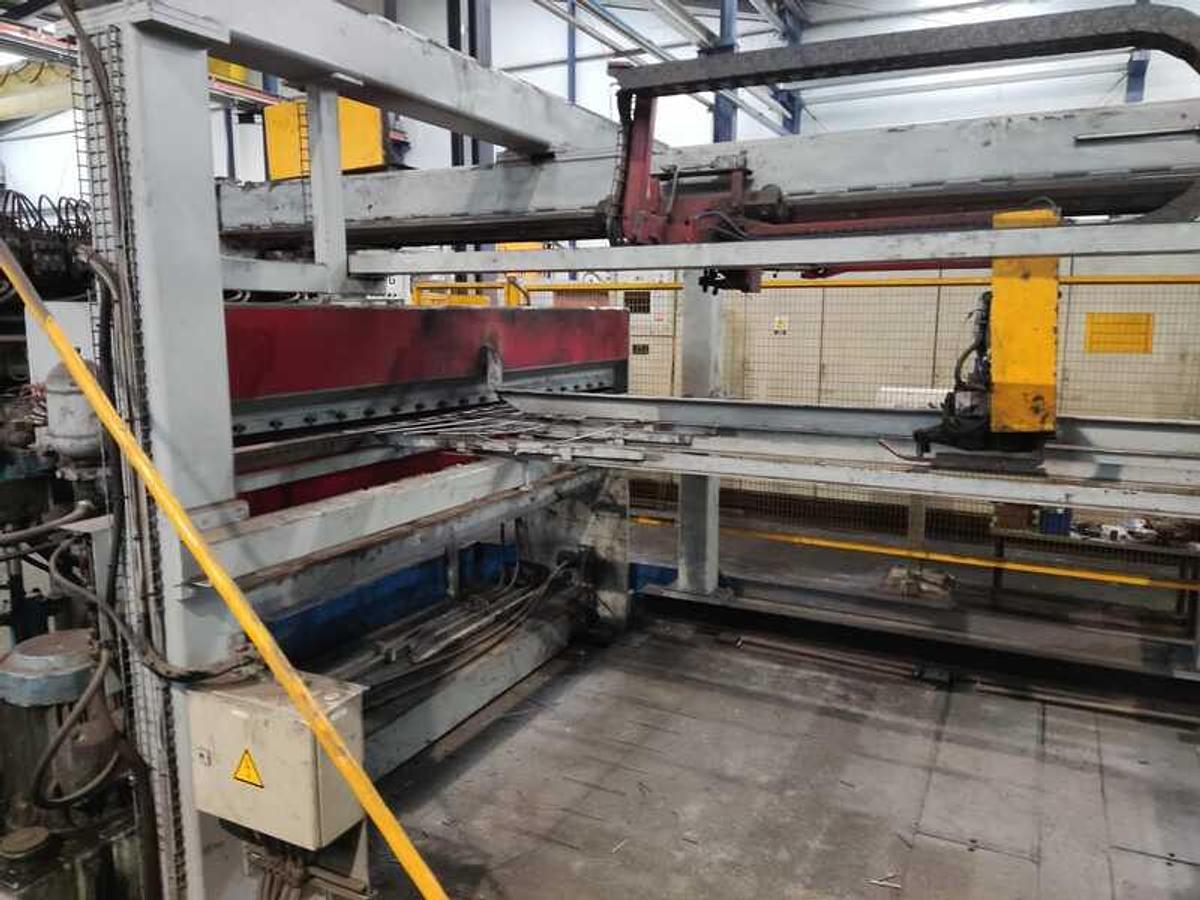

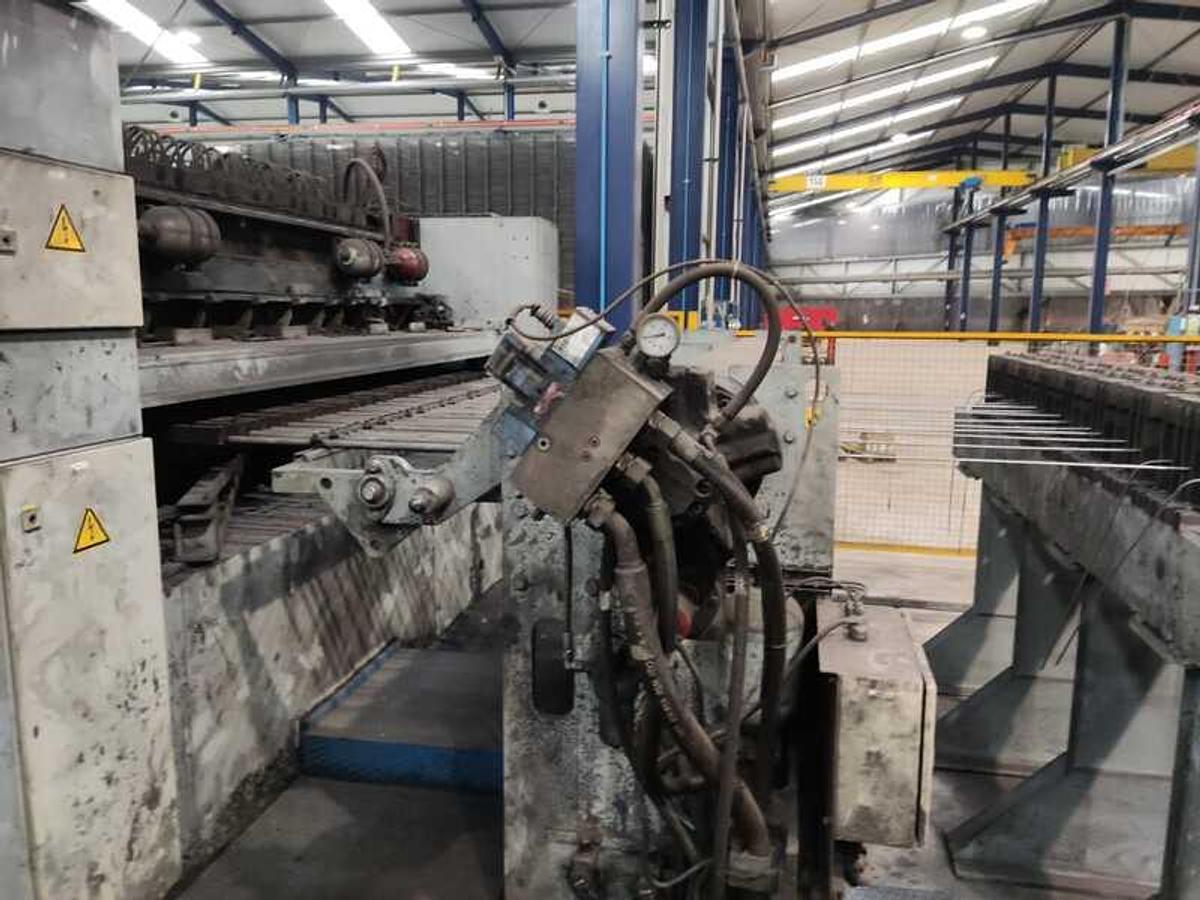

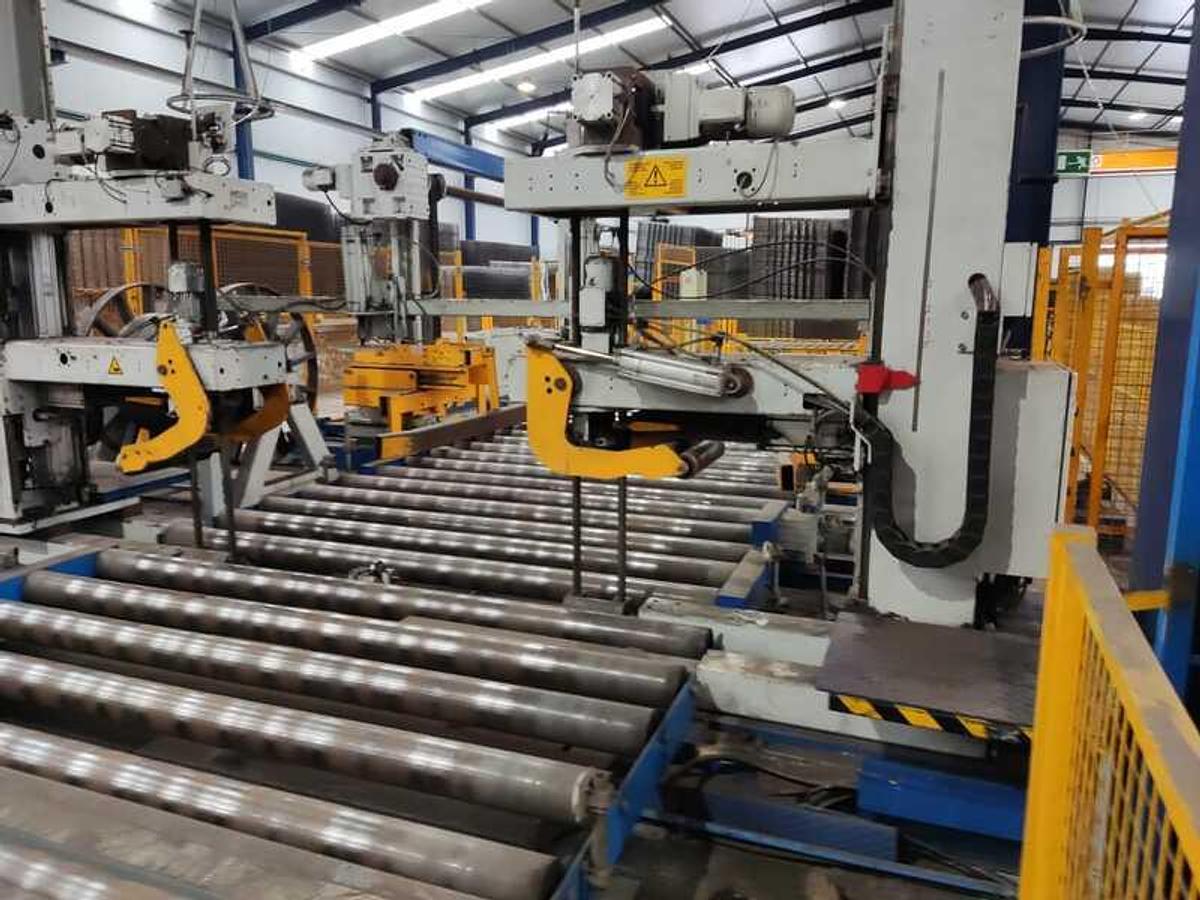

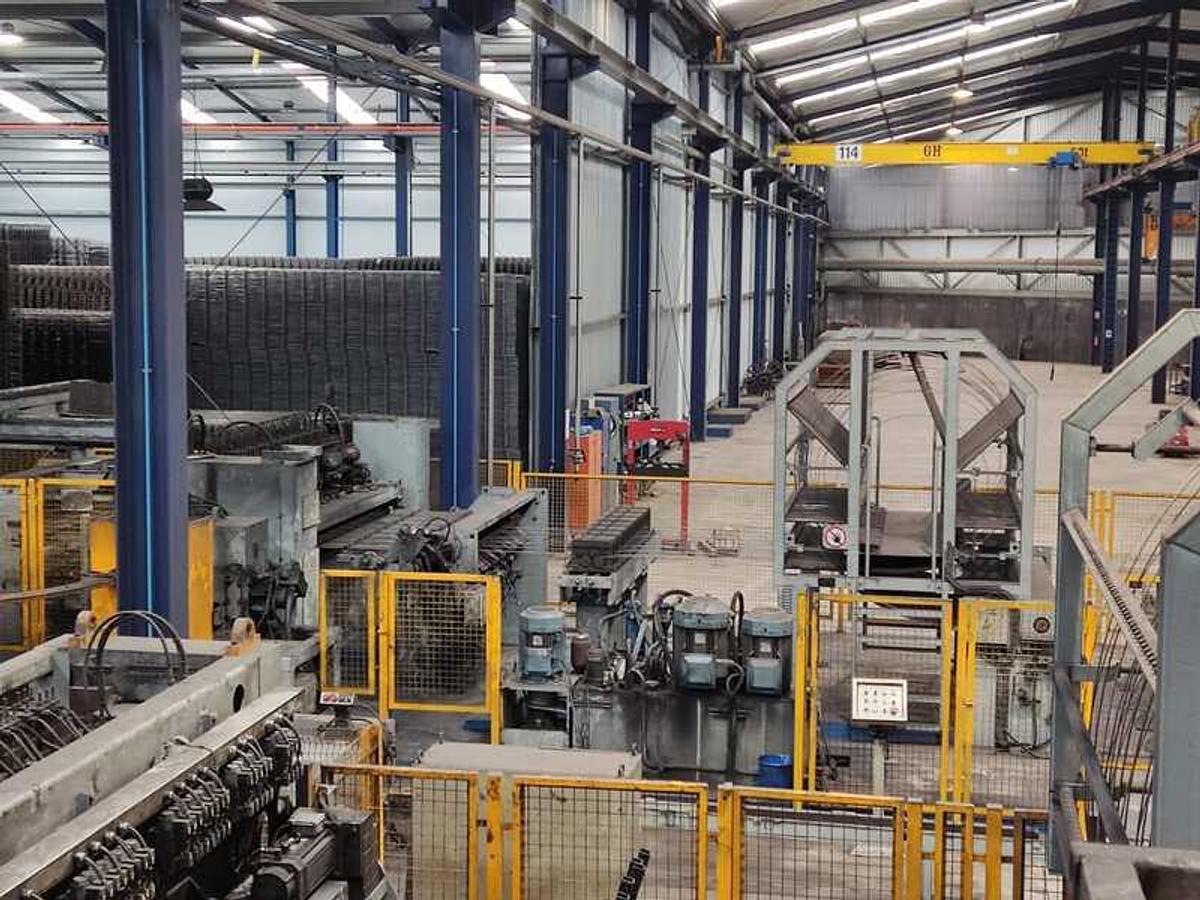

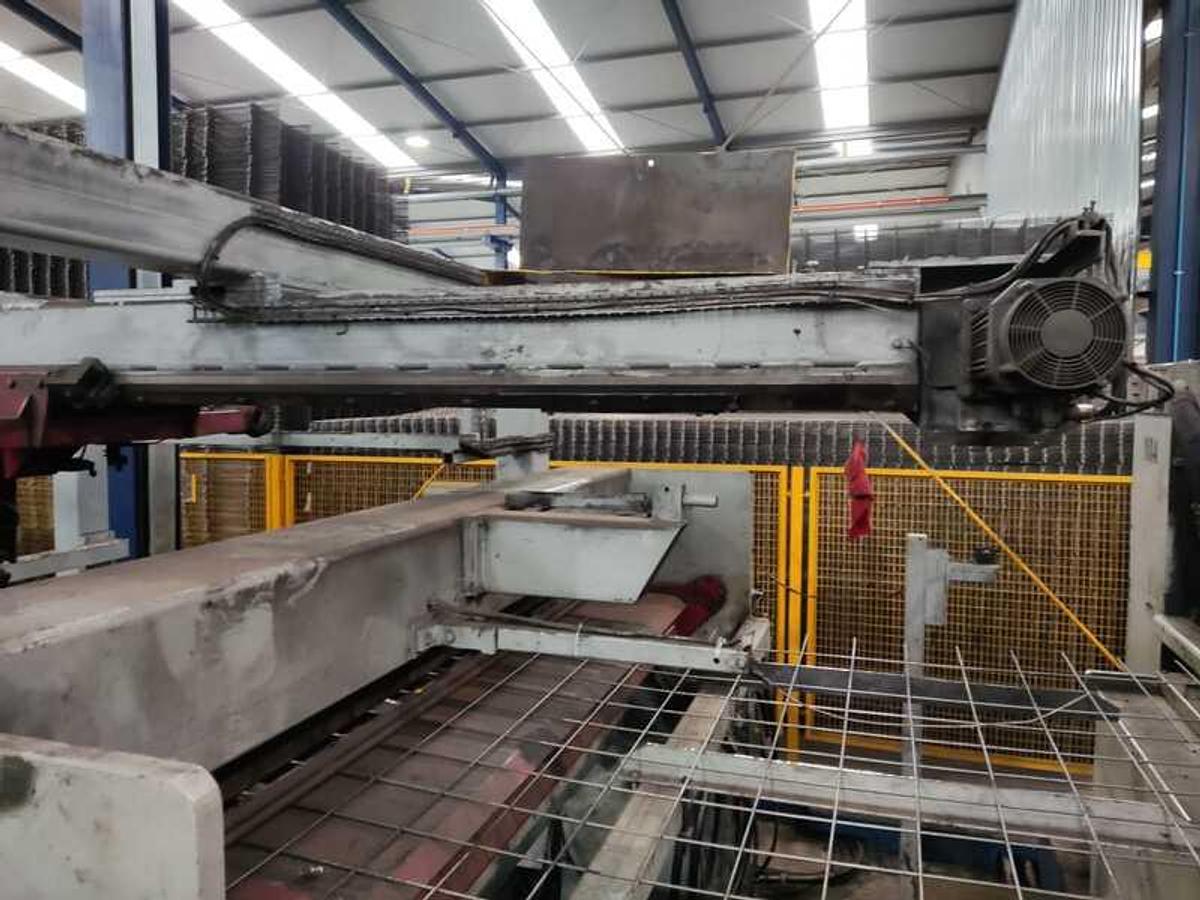

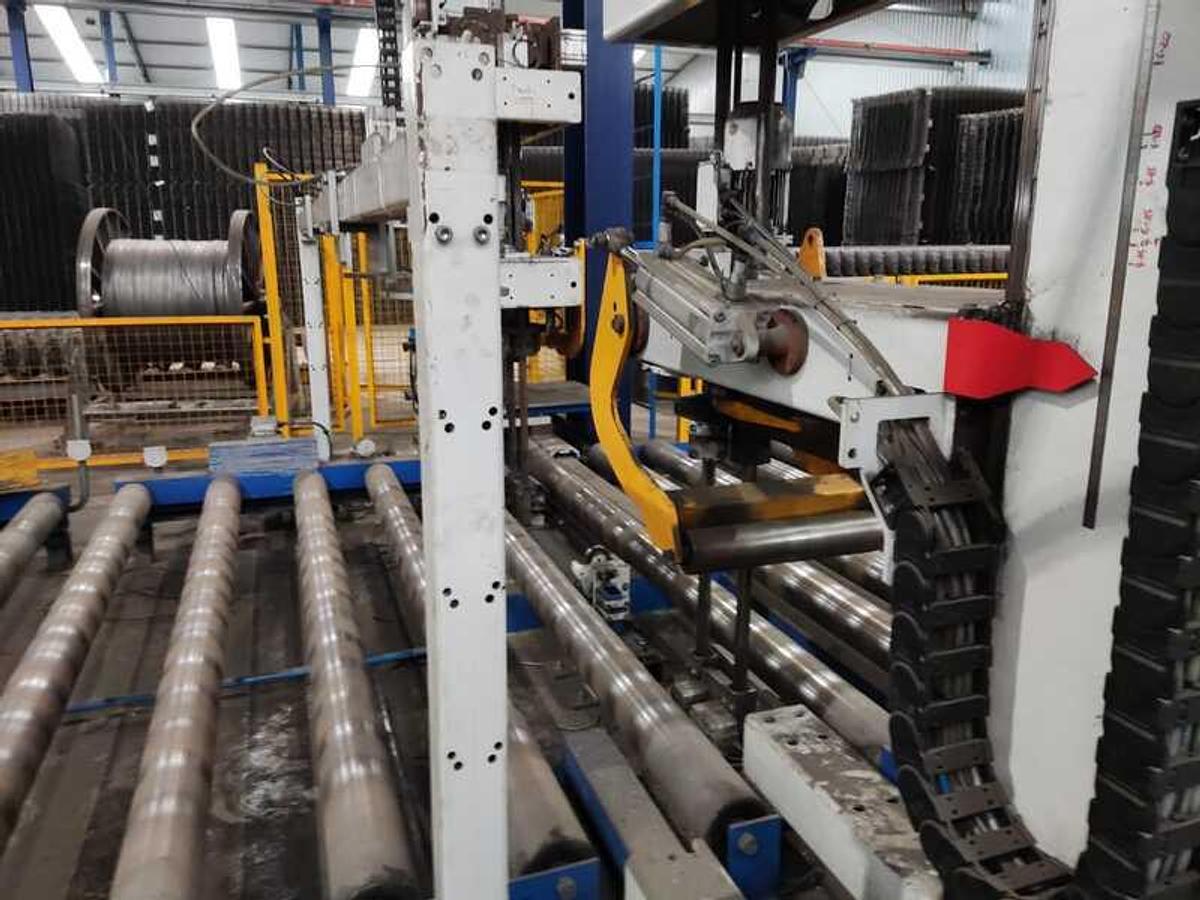

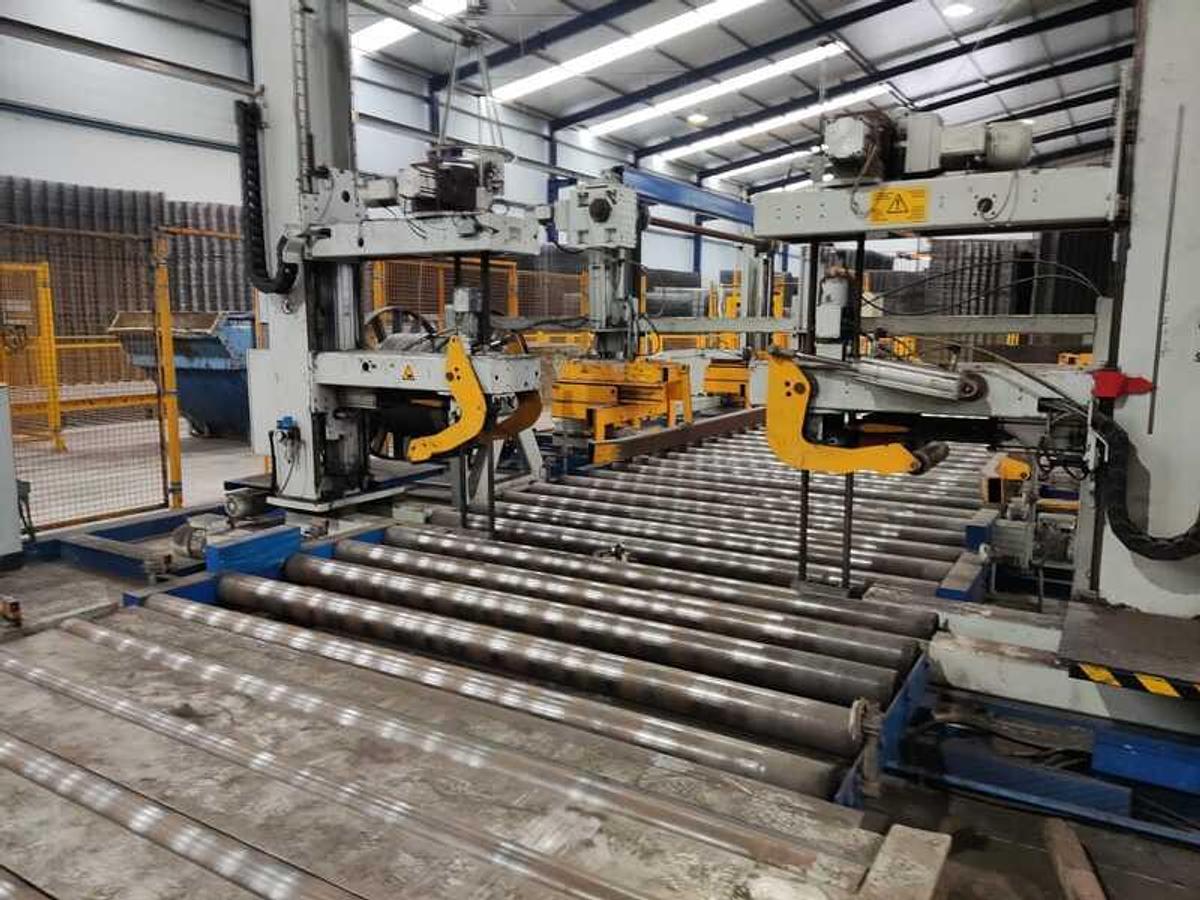

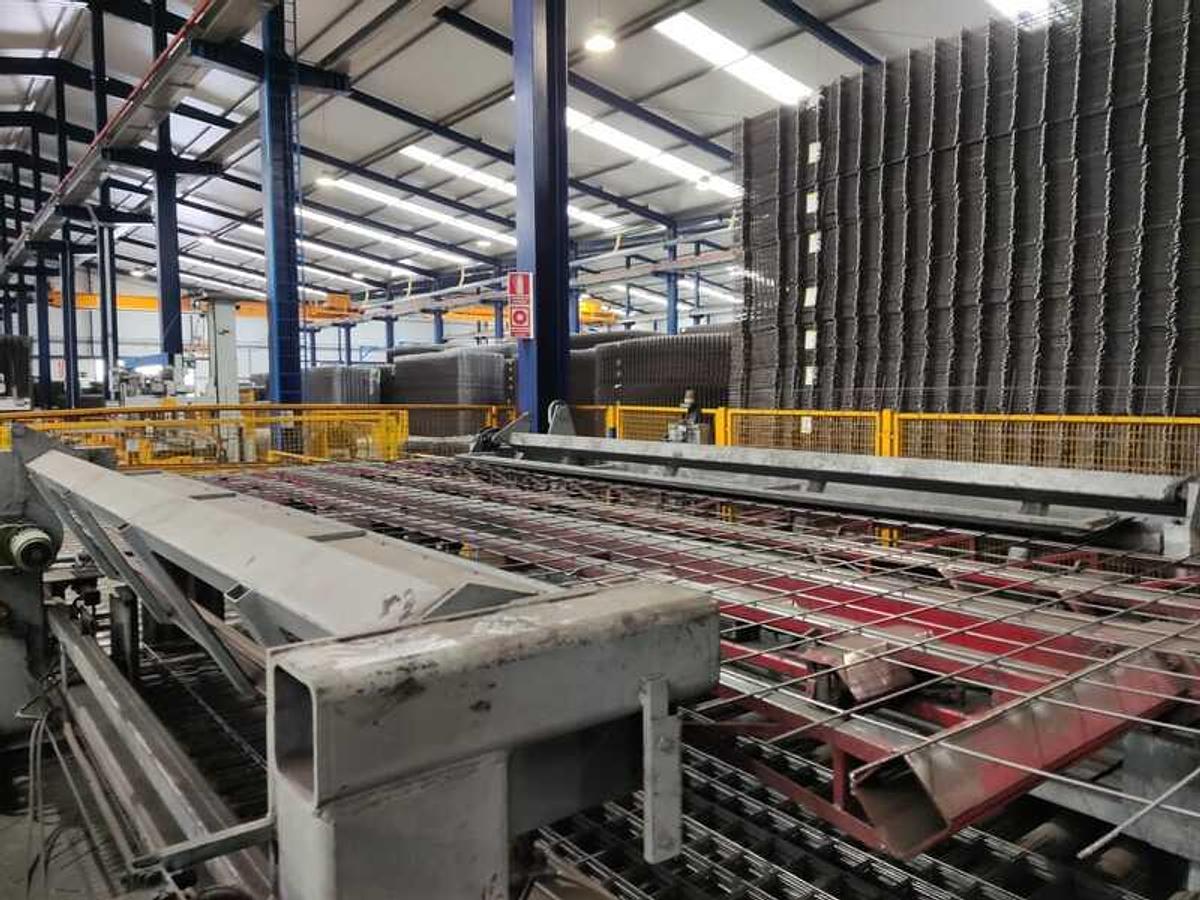

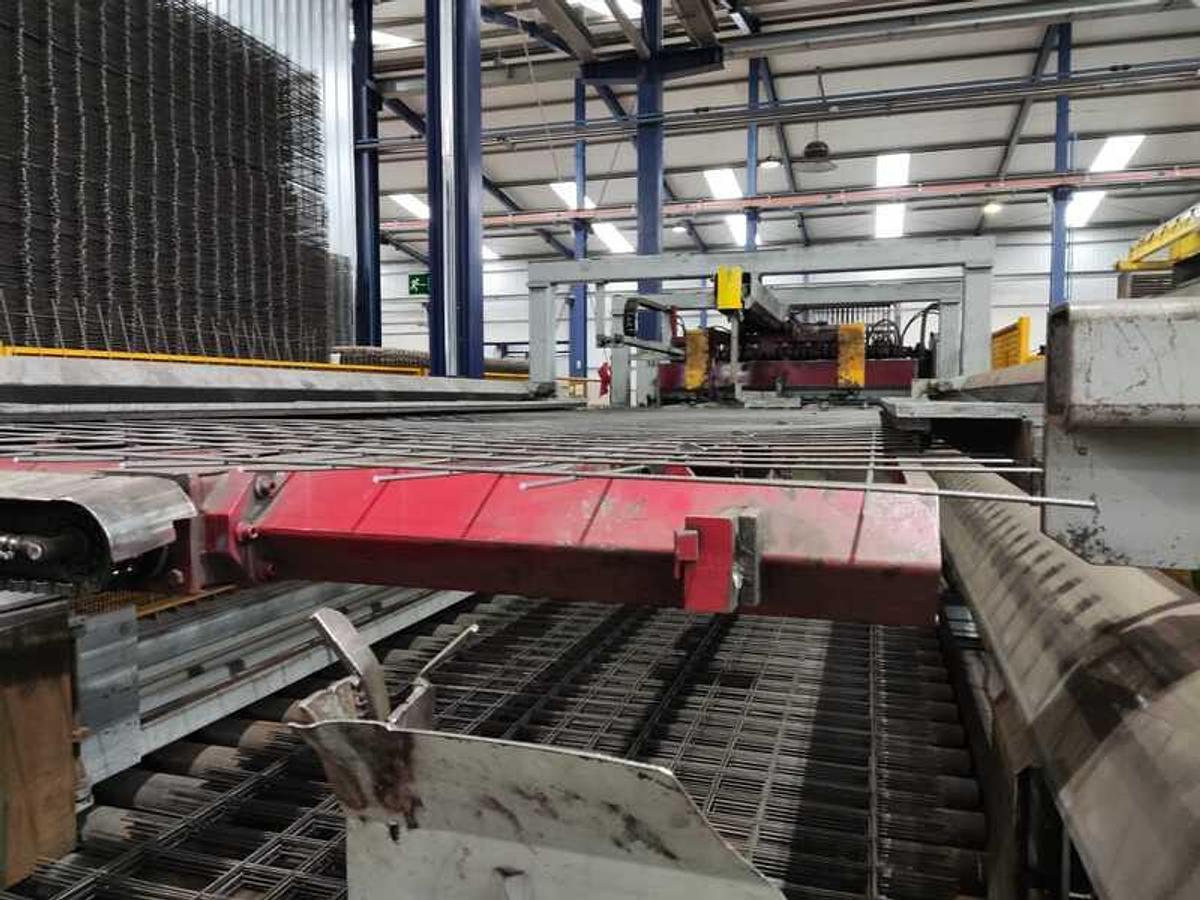

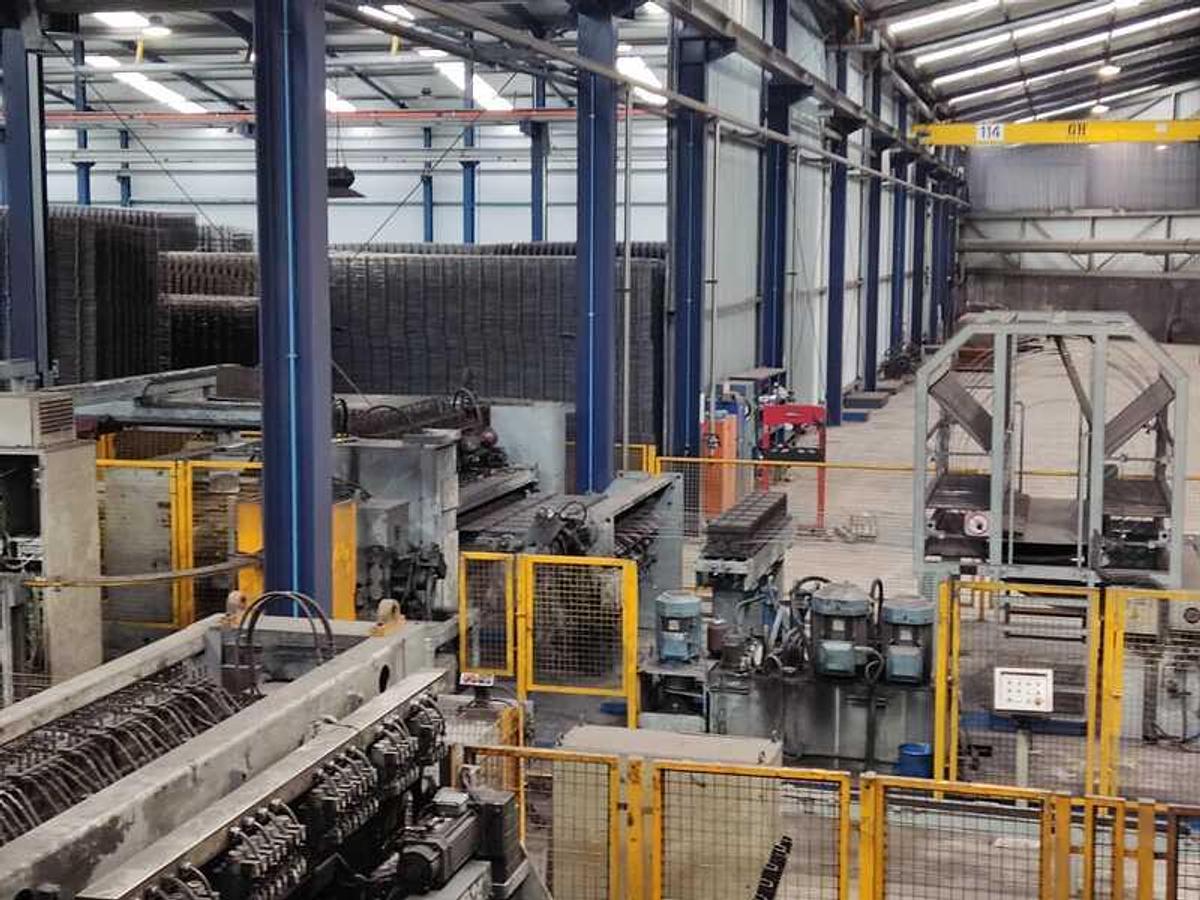

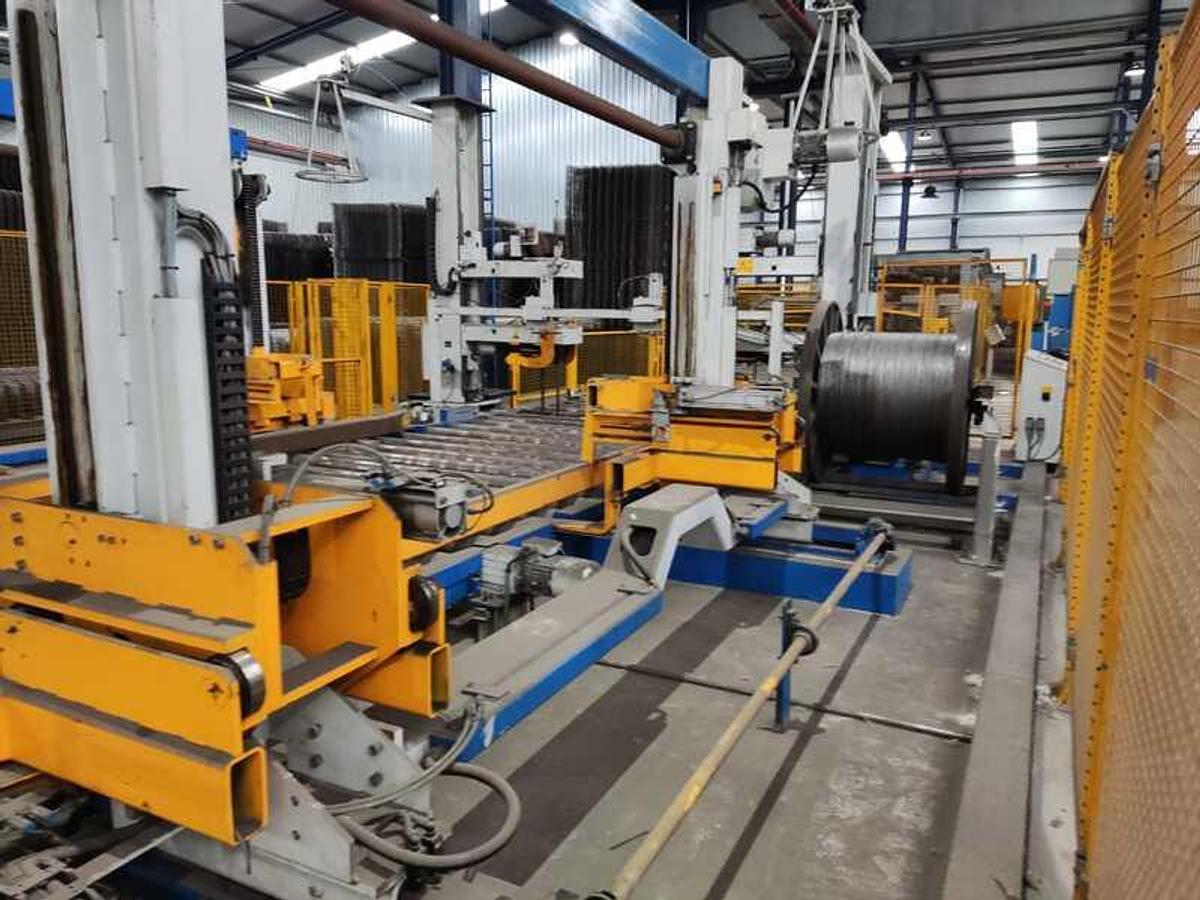

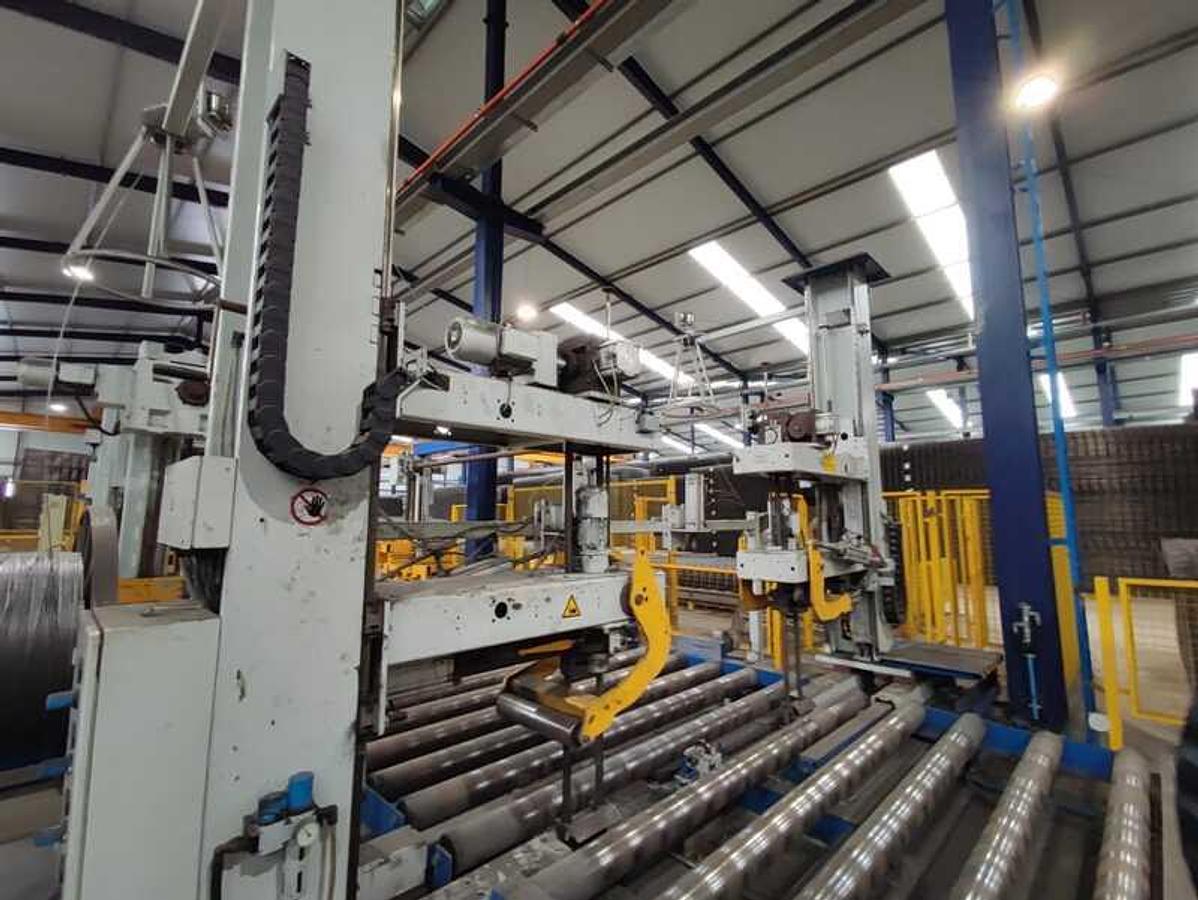

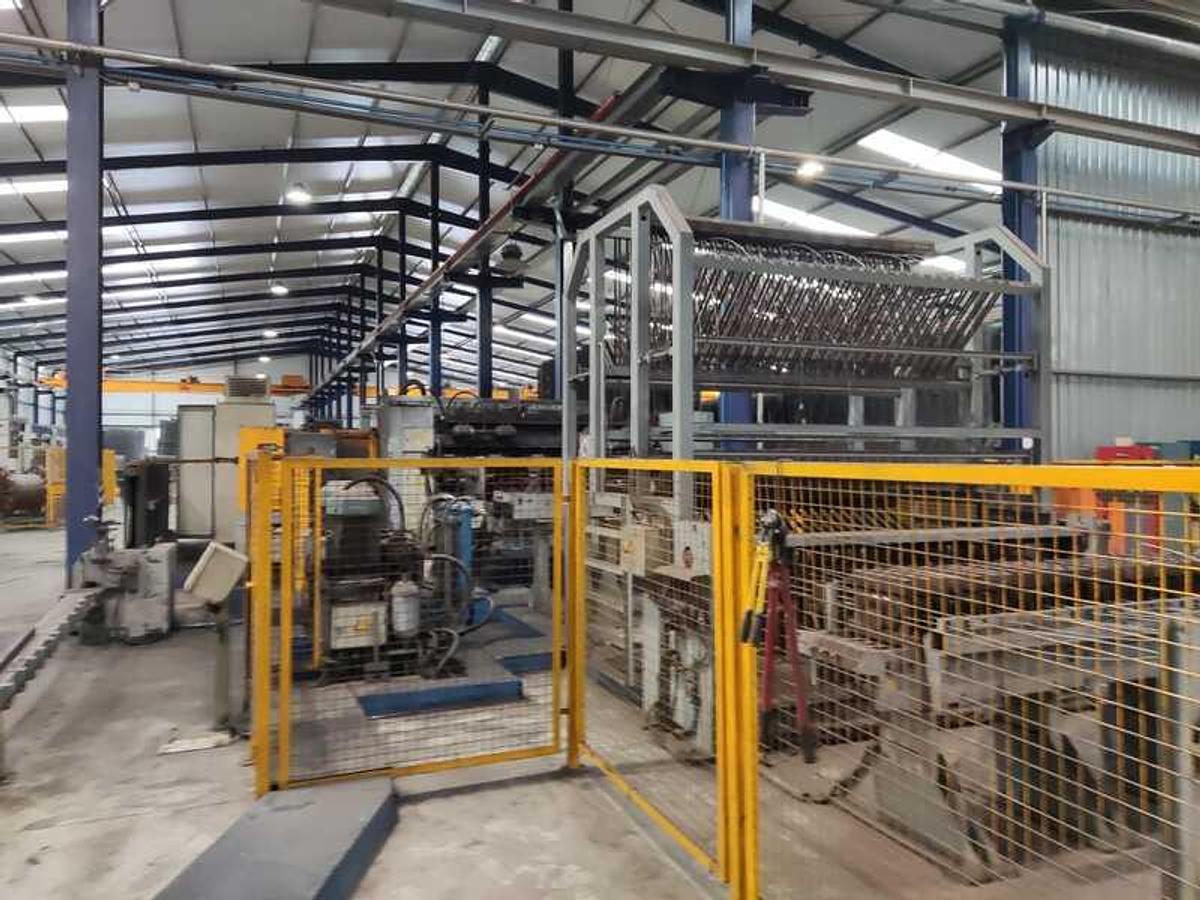

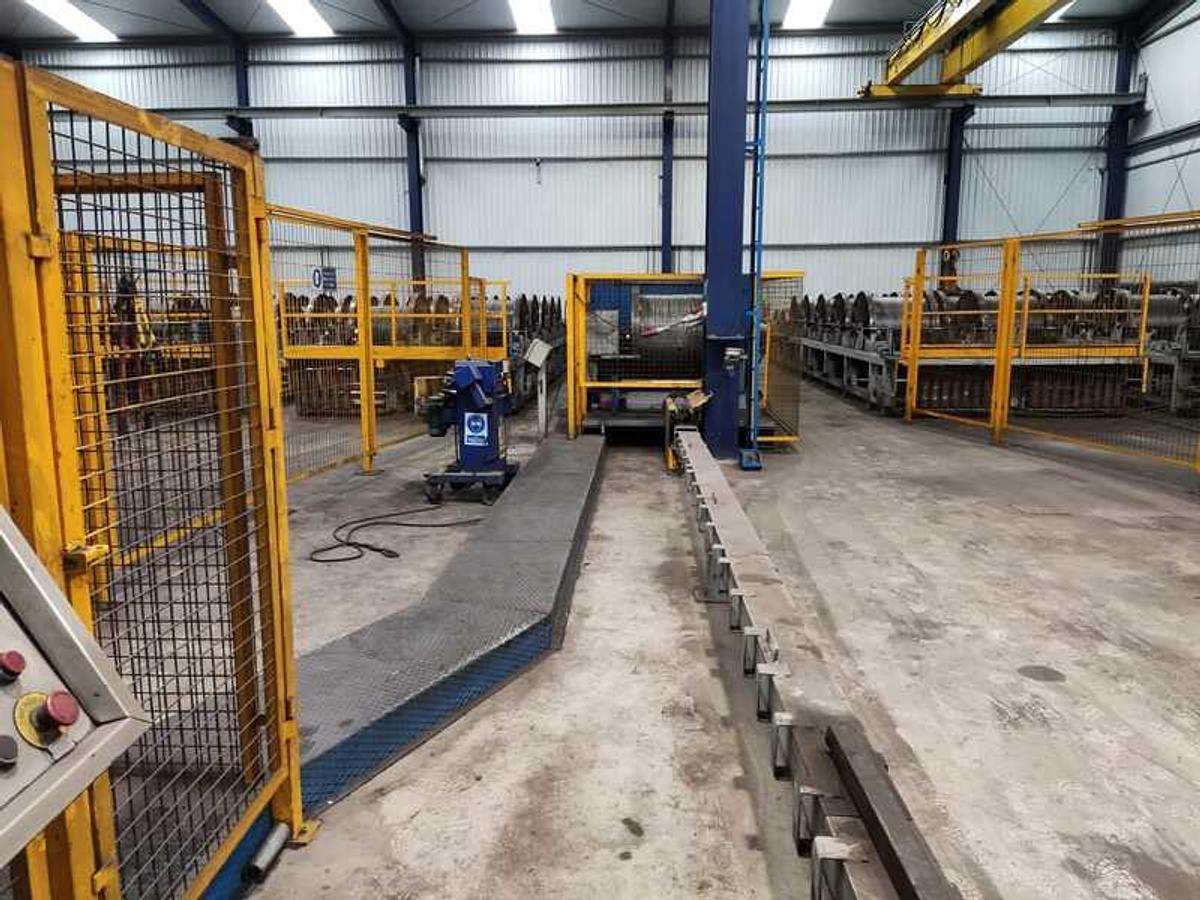

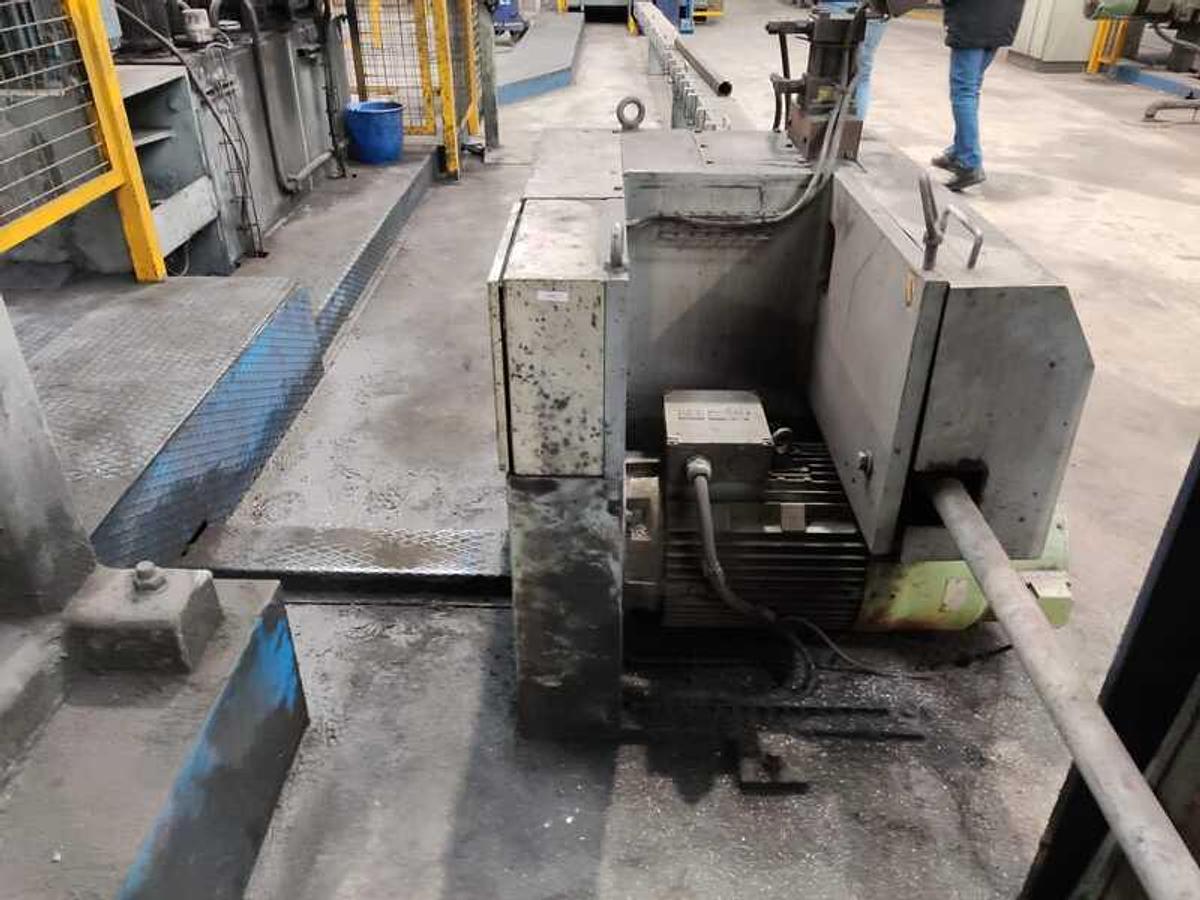

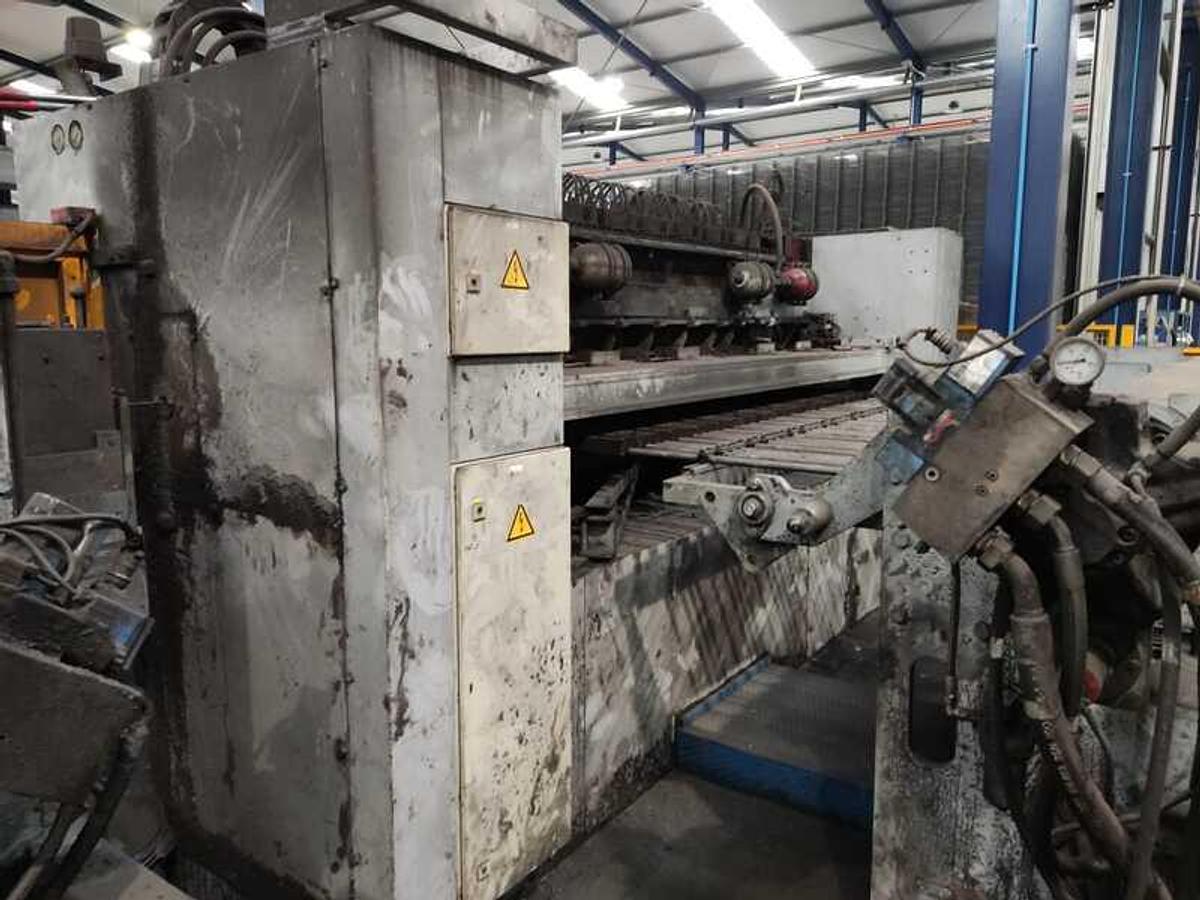

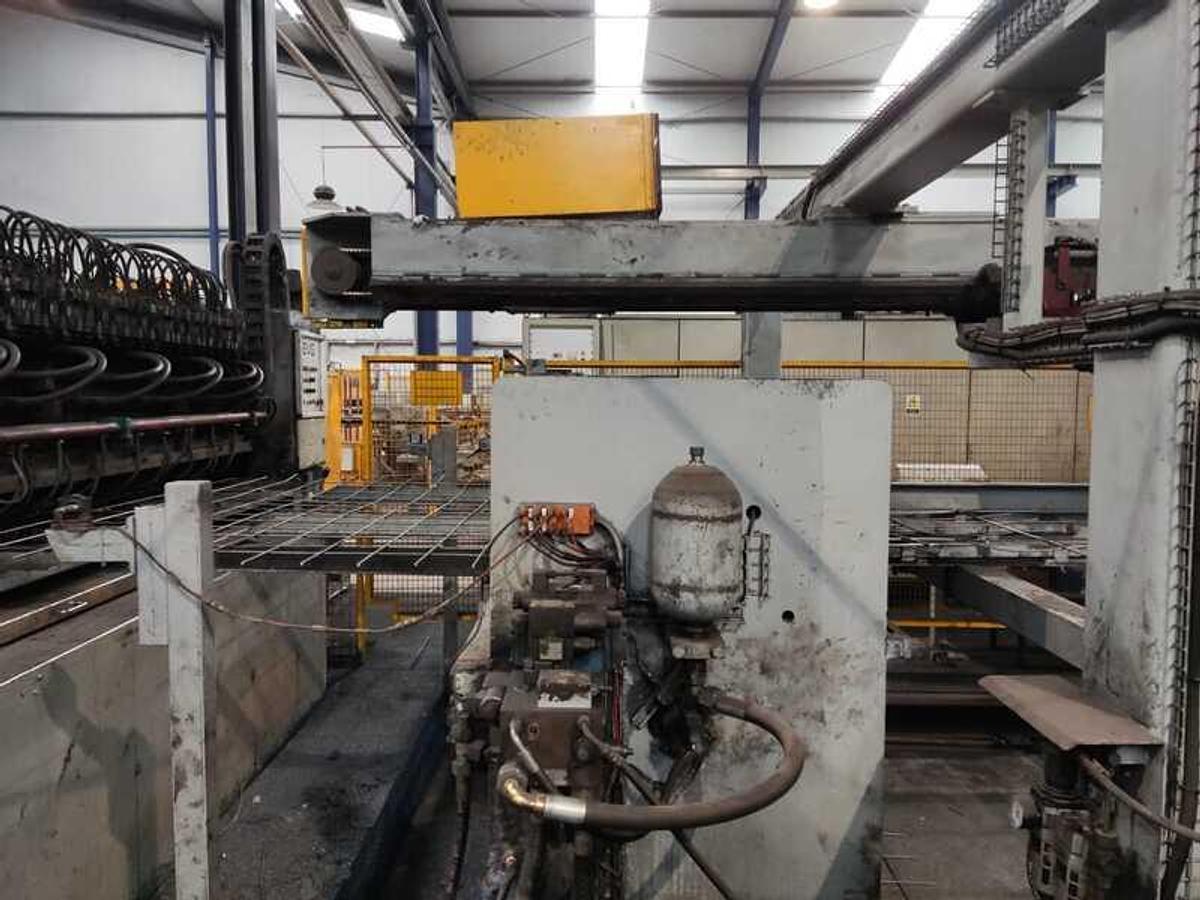

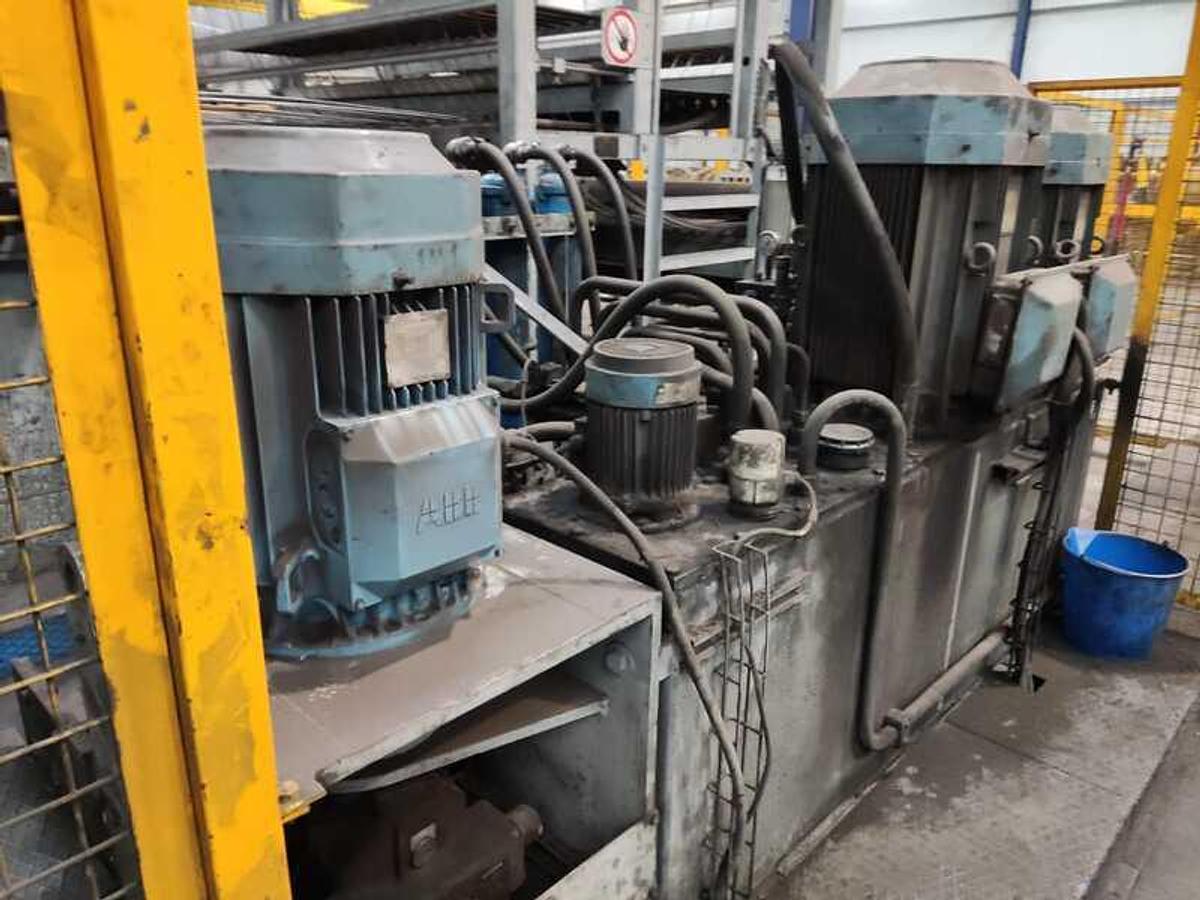

FULLY AUTOMATIC - EVG G55/102 MESH WELDING LINE

Construction year – 1999.

Line is refurbished 4-5 years ago.

Electrical cabinet completelly updated in software, PLC S7-405 and

electrical systems in DECEMBER 2018.

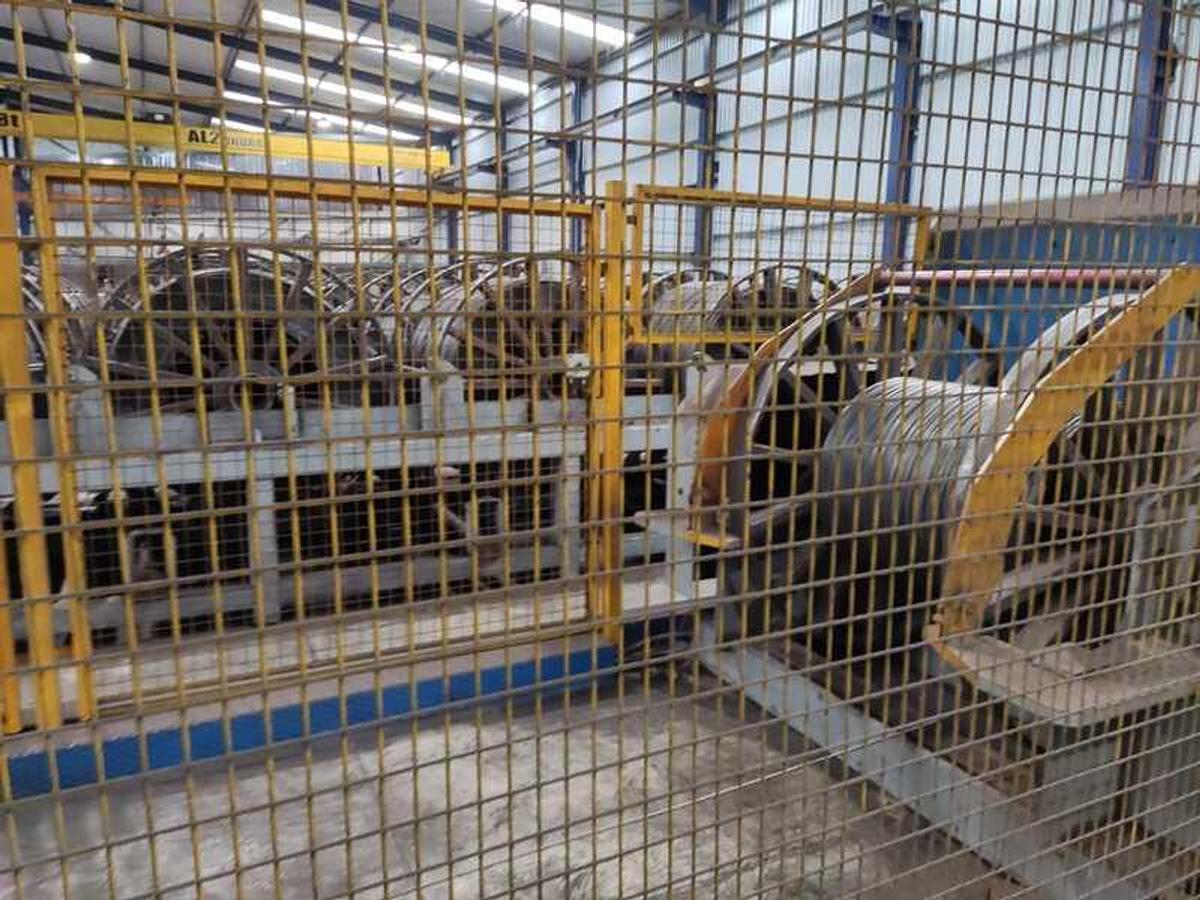

Line + cross wires from coils

Mesh width: min. 1200mm to max. 2500mm

Mesh length: min. 2000mm to max. 6000mm

Separations between AT: 50mm – 1000mm stepless

Separations between AL: 100mm, 150mm, and multiples

Diameter AT: min. 3,8mm to max. 8mm

Diameter AL: min. 3,8mm to max. 8mm

Machine speed: max. 150 QD/min.

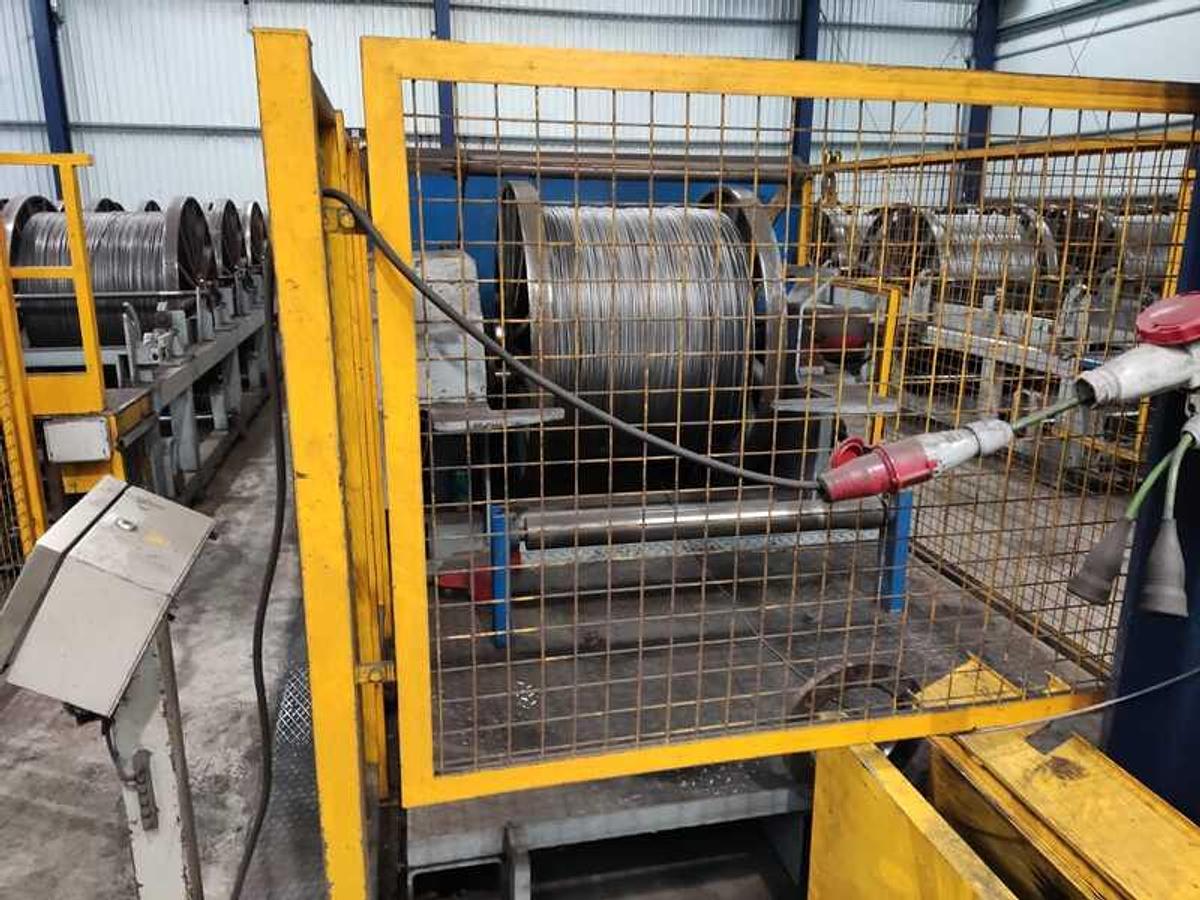

Reel weight: max. 3000 kg

Stack height: max. 700mm

Panel weight: max. 150 kg

Power rating of welding transformers at 50% intermittent duty: 960 KVA

Drive power: 153kW

Tension de red: 3 x 400V

Network frequency: 50 Hz

Dimensions (approx. mm)

Machine: L x W x H Weight:

G55L/102-RV 4900mm x 1800mm x 2300mm 15,000 kg

T6B/102 7500mm x 2200mm x 1800mm 6,000 kg

T6B/102 5200mm x 1700mm x 2200mm 4,200 kg

Main Voltage: 3 x 400 V

Frequency: 50 Hz

Connection power: 960 kVA (50% S.I.)

192 kVA (drive force)

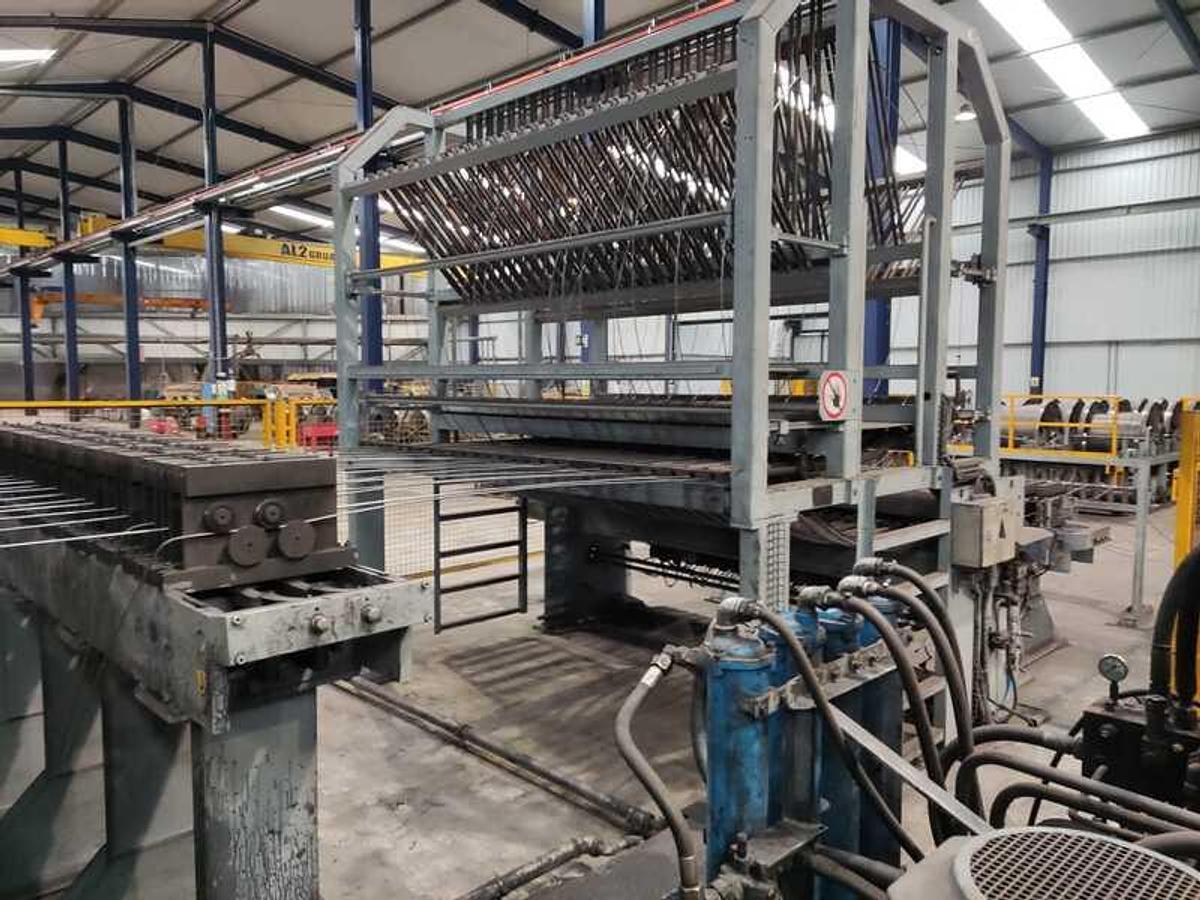

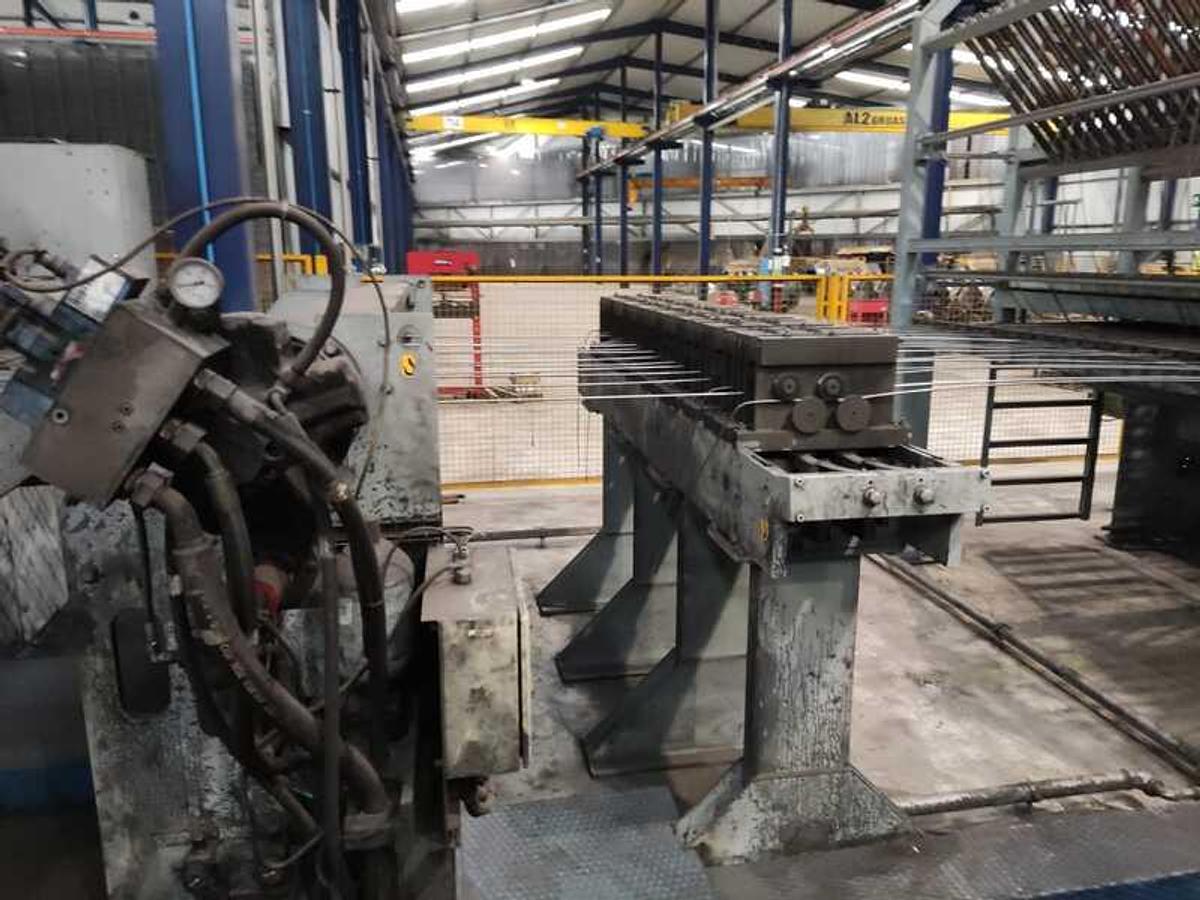

24 longitudinal wire straightener

Longitudinal wire dragger Lars loop

Longitudinal straighteners

Longitudinal feed

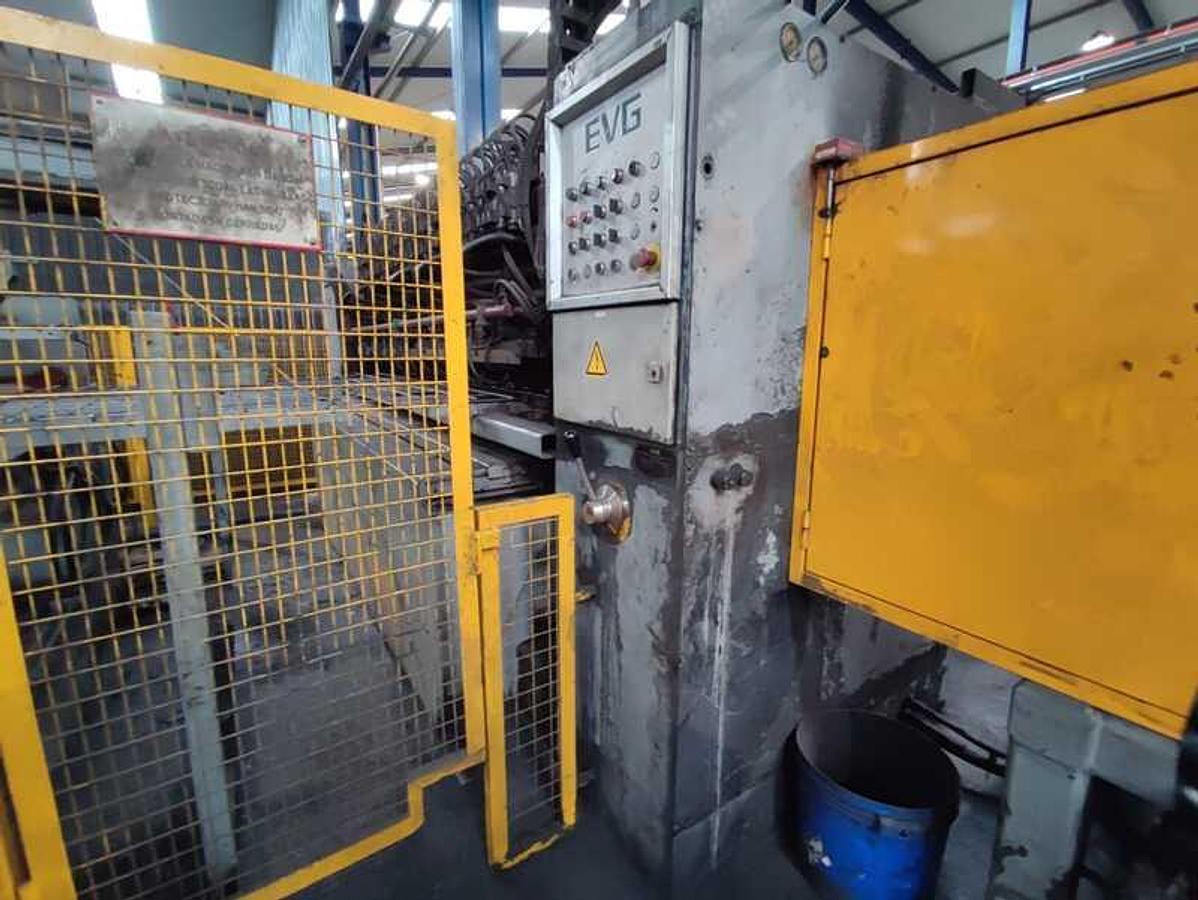

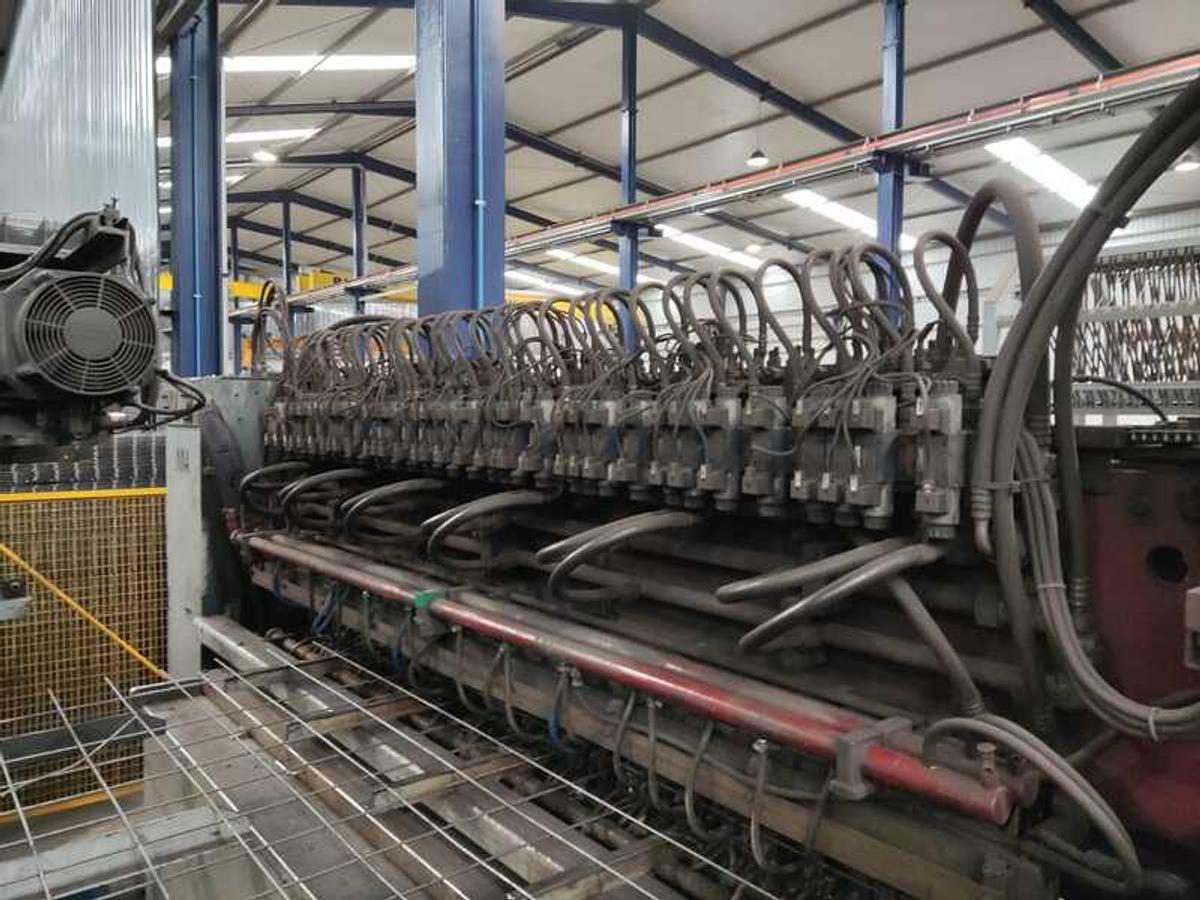

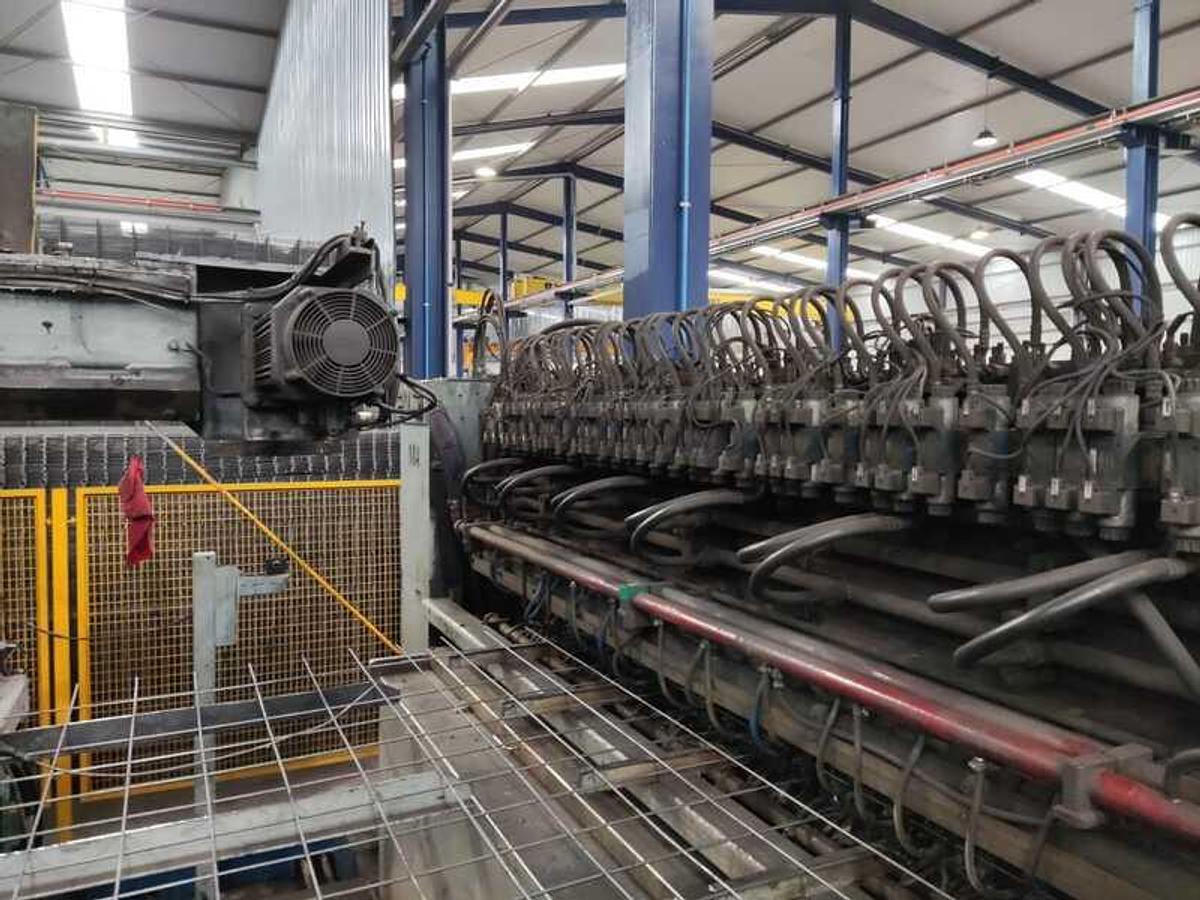

Welding head

Shears

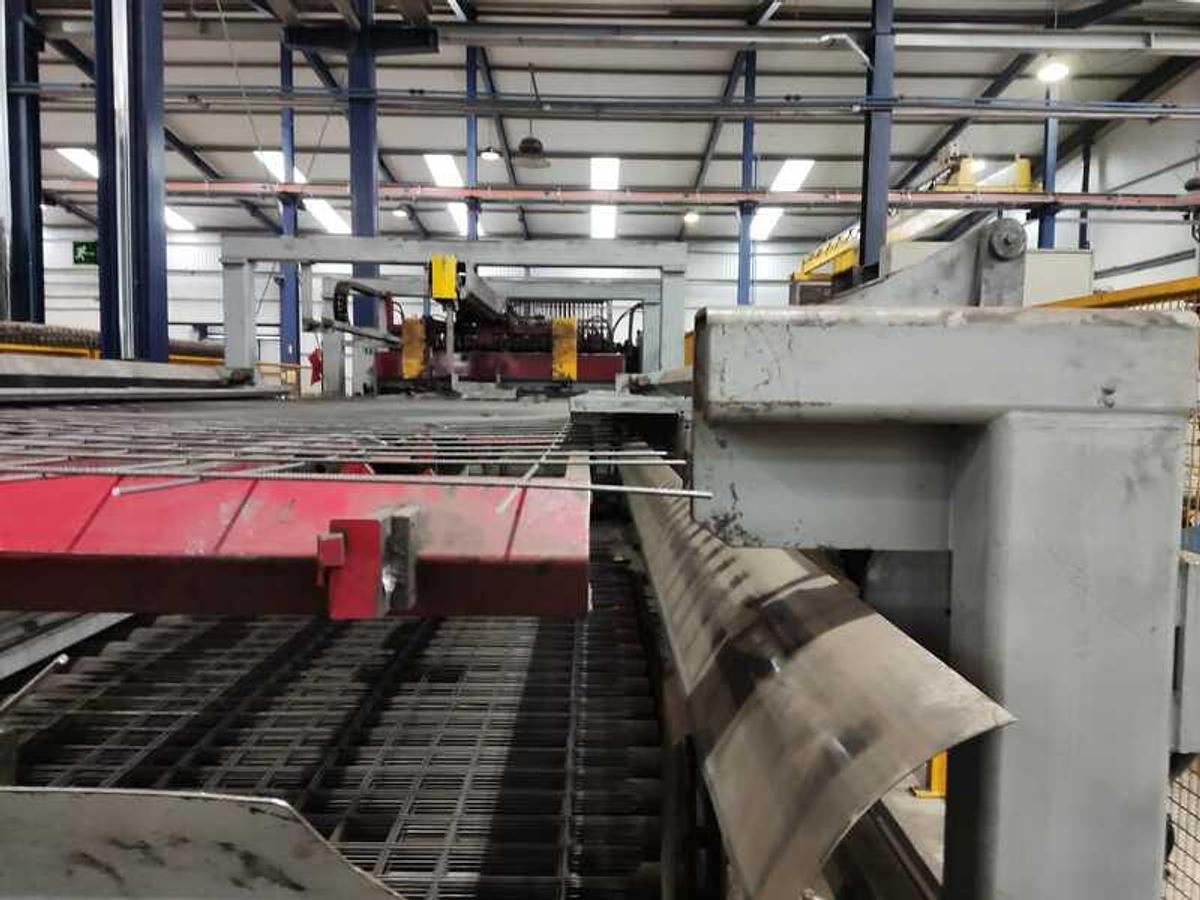

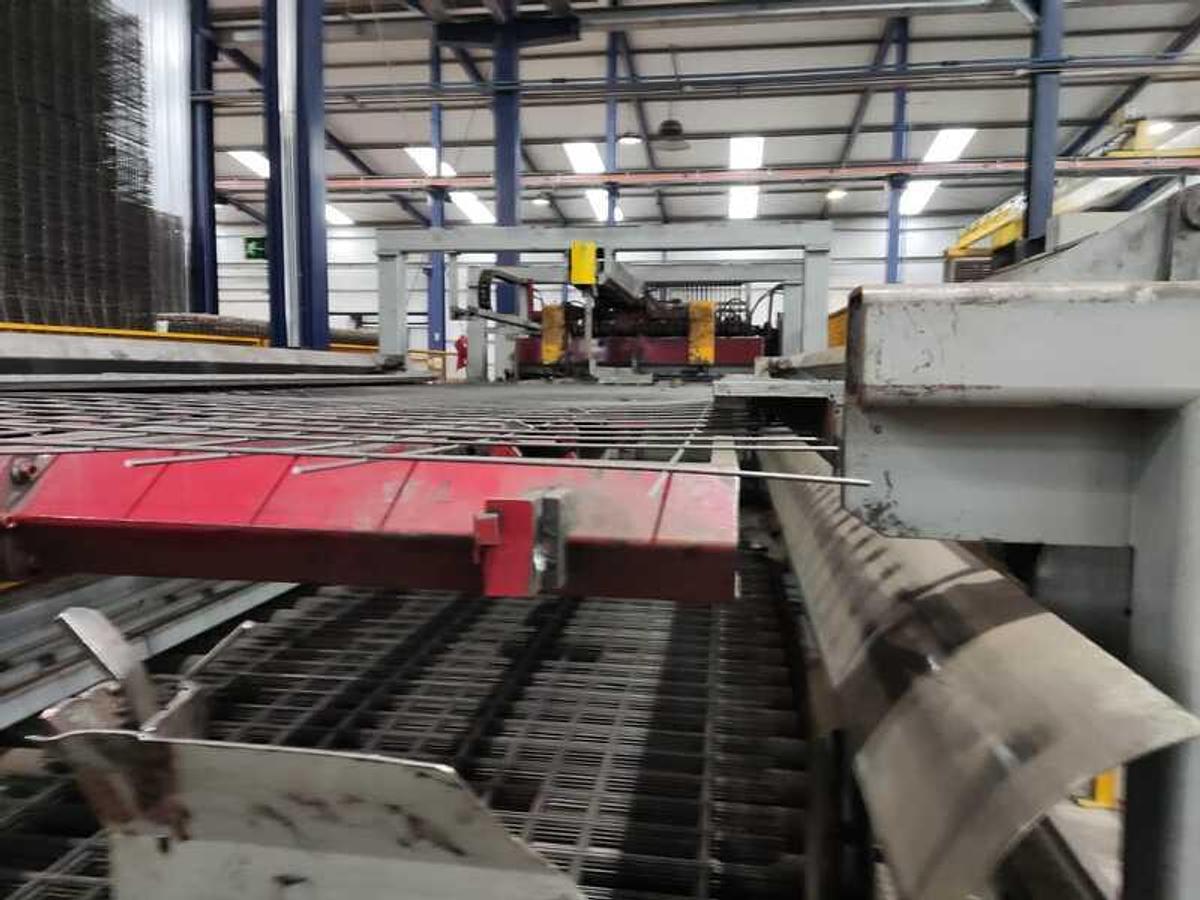

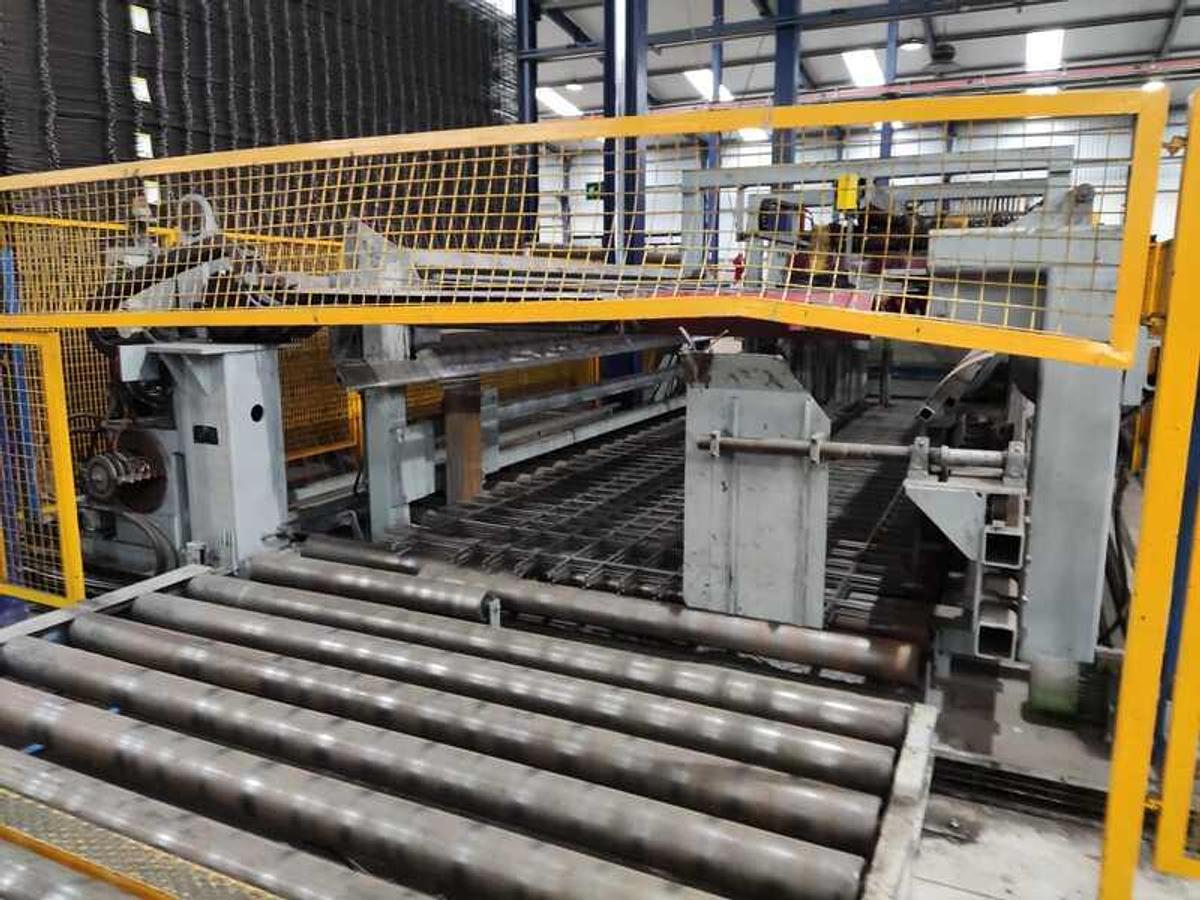

Mesh extraction

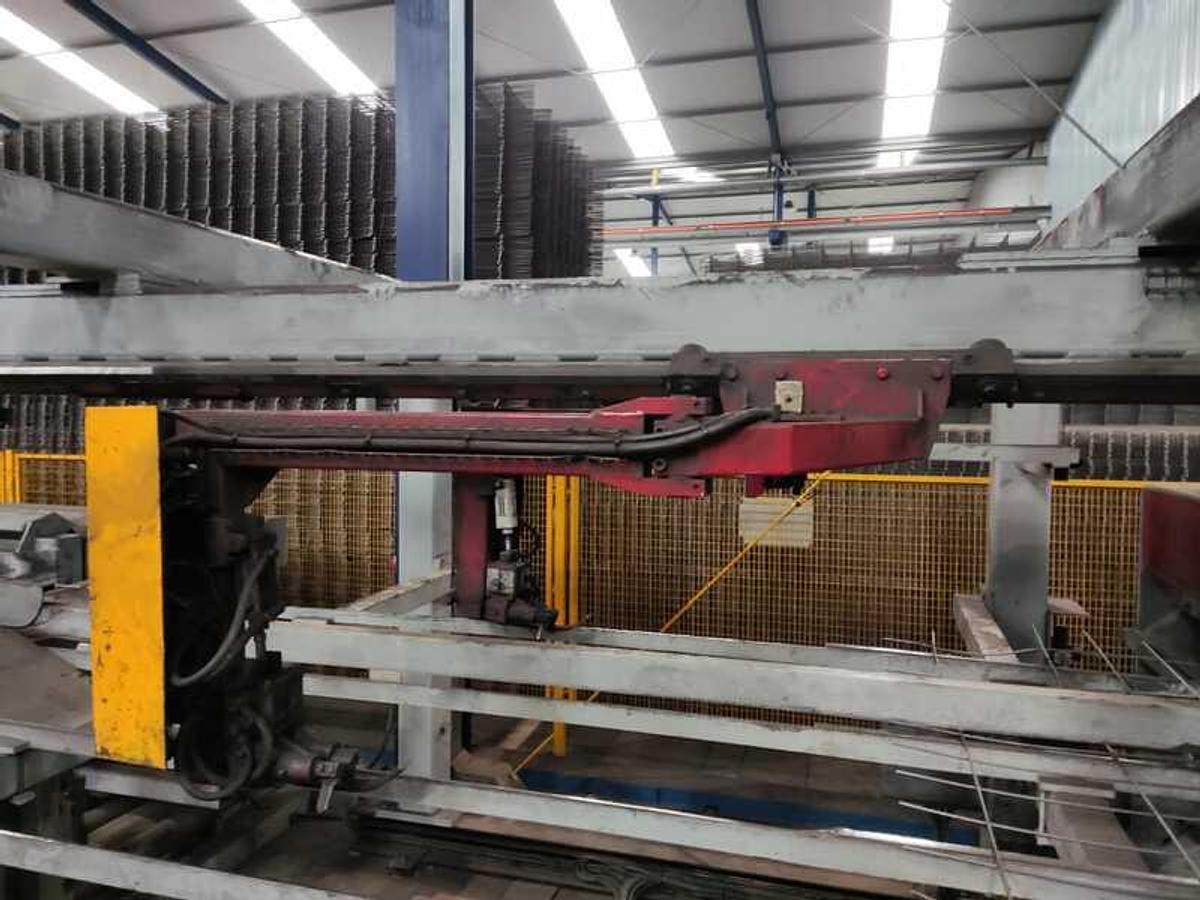

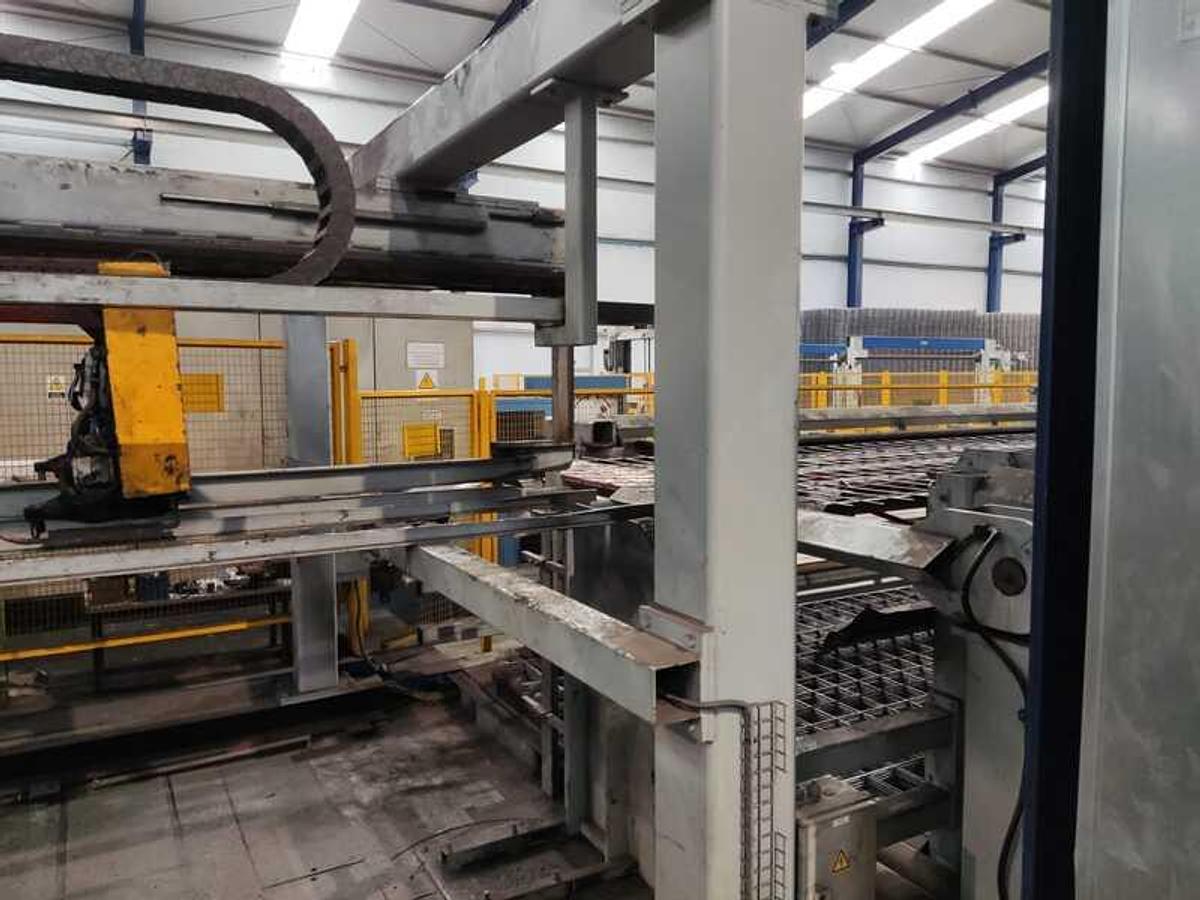

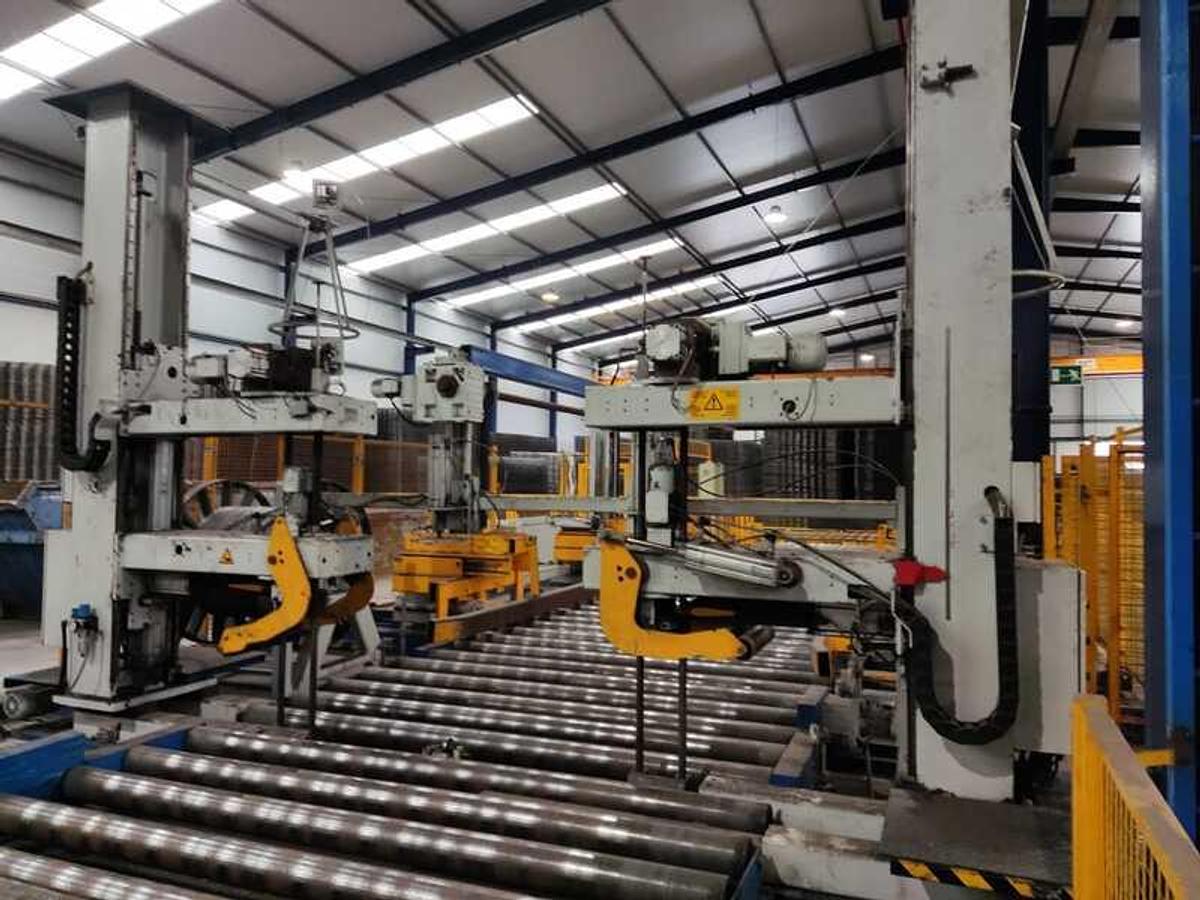

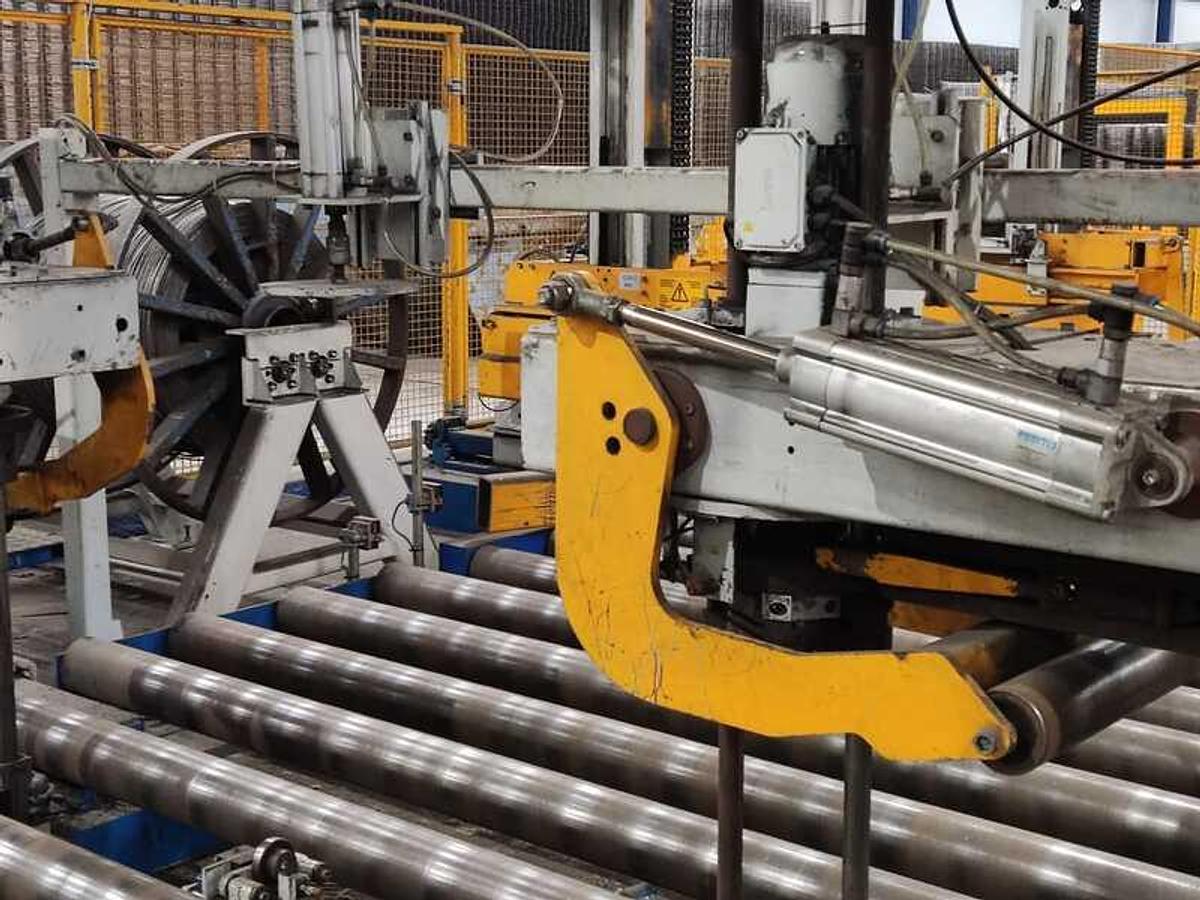

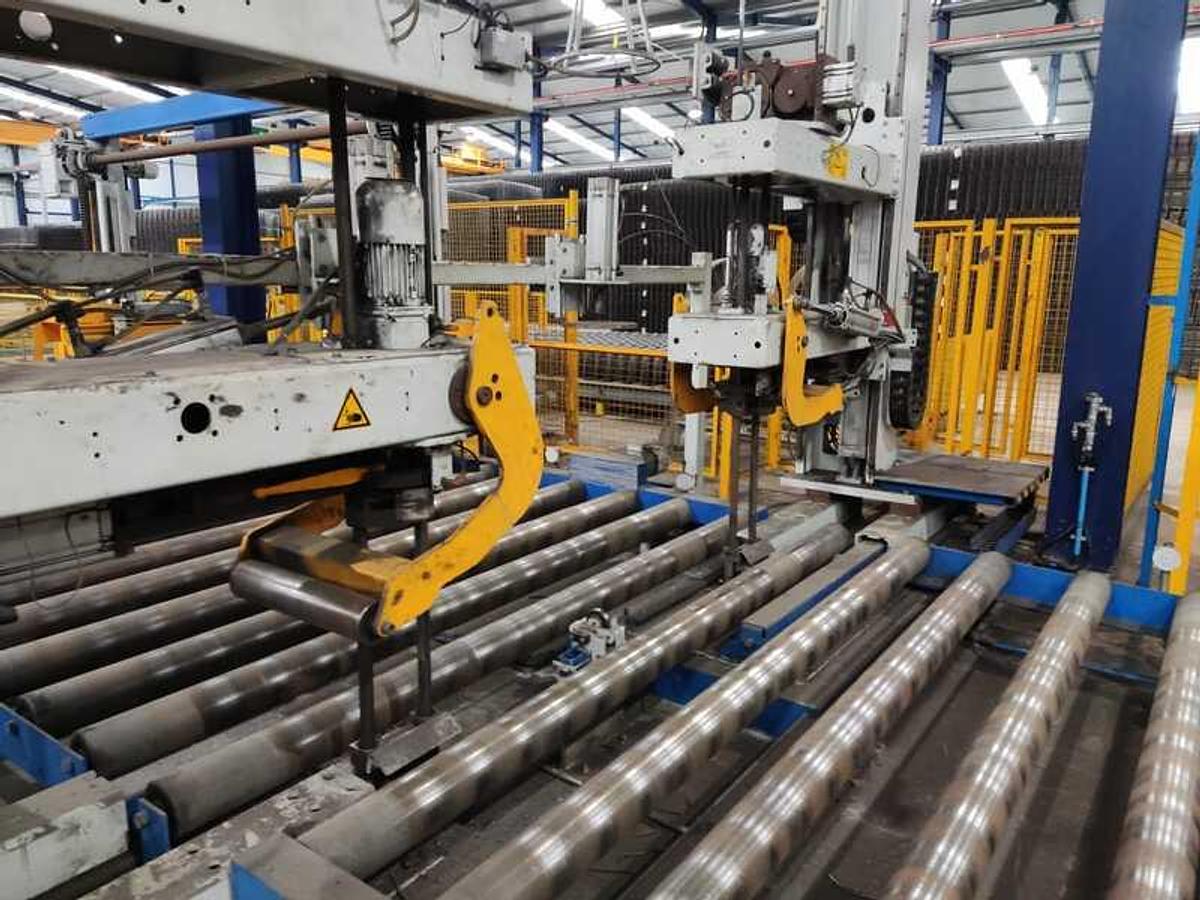

Turner stacker

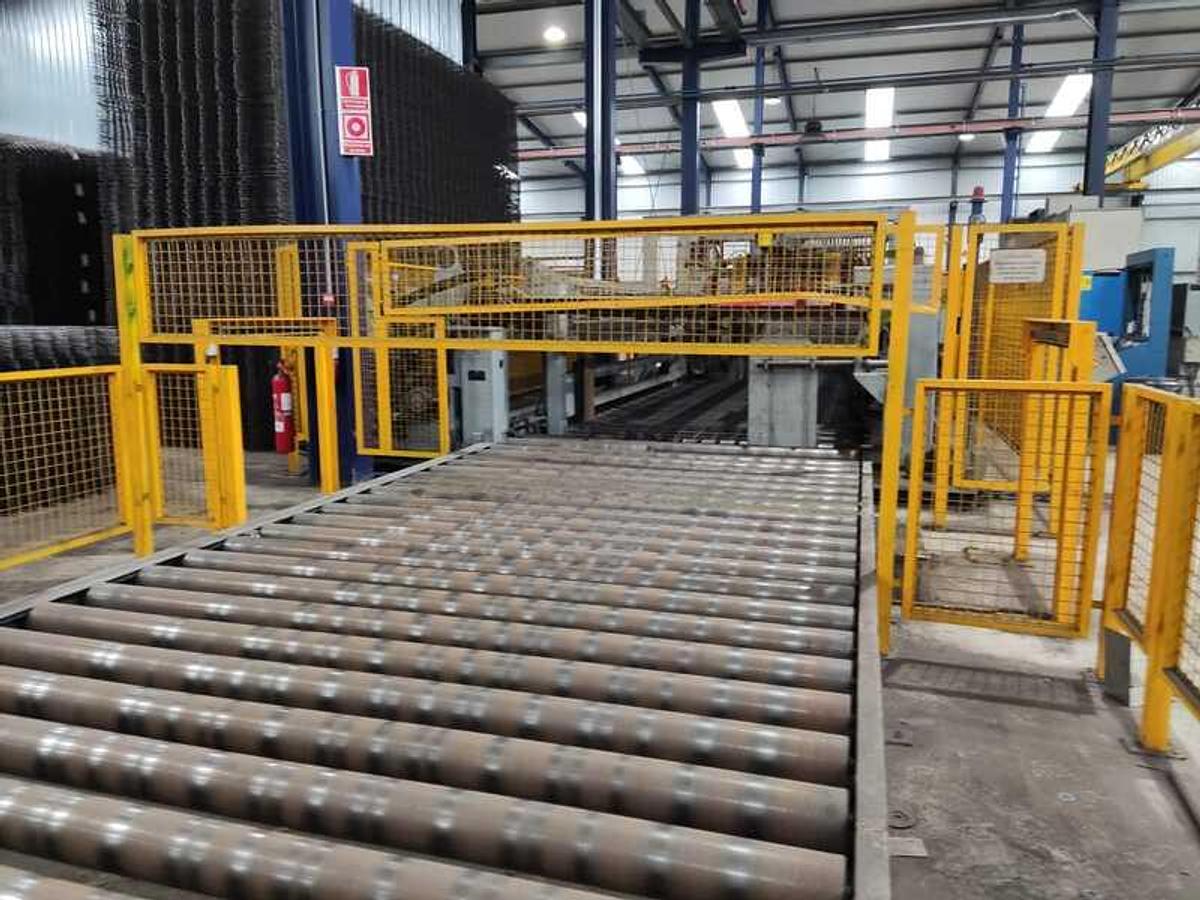

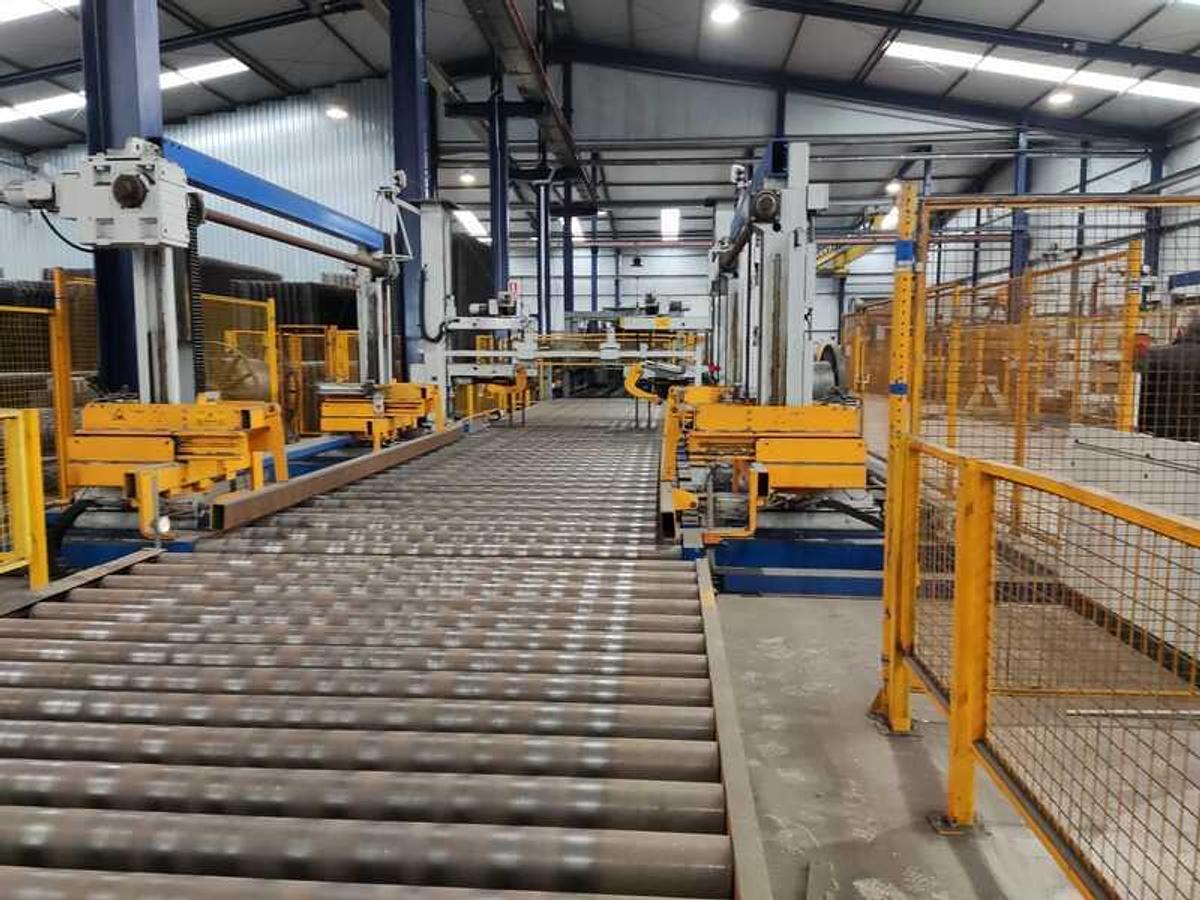

Exit table of 7m

Cross feeders

Cross wire drag
