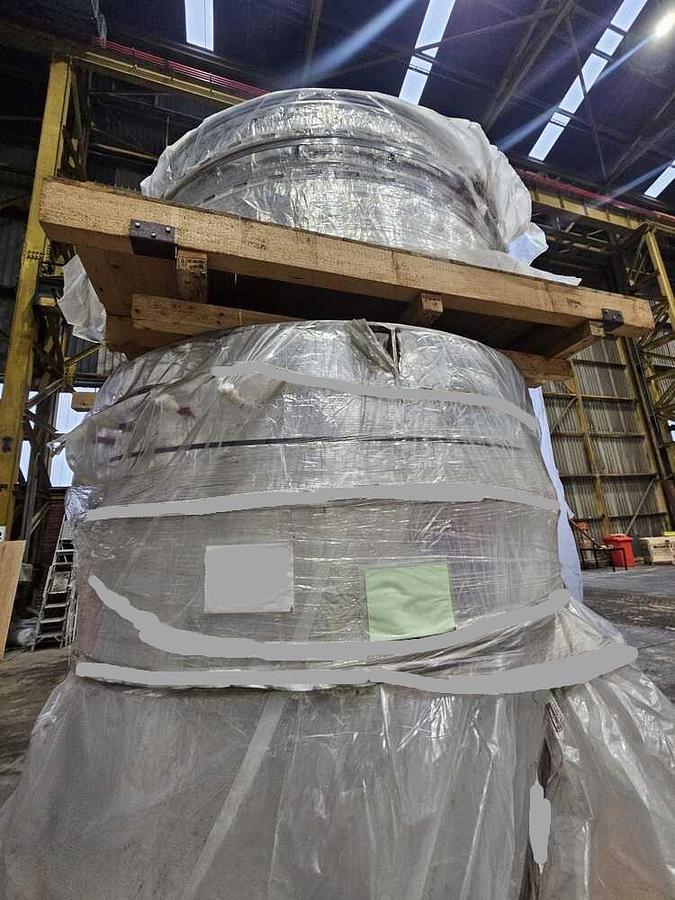

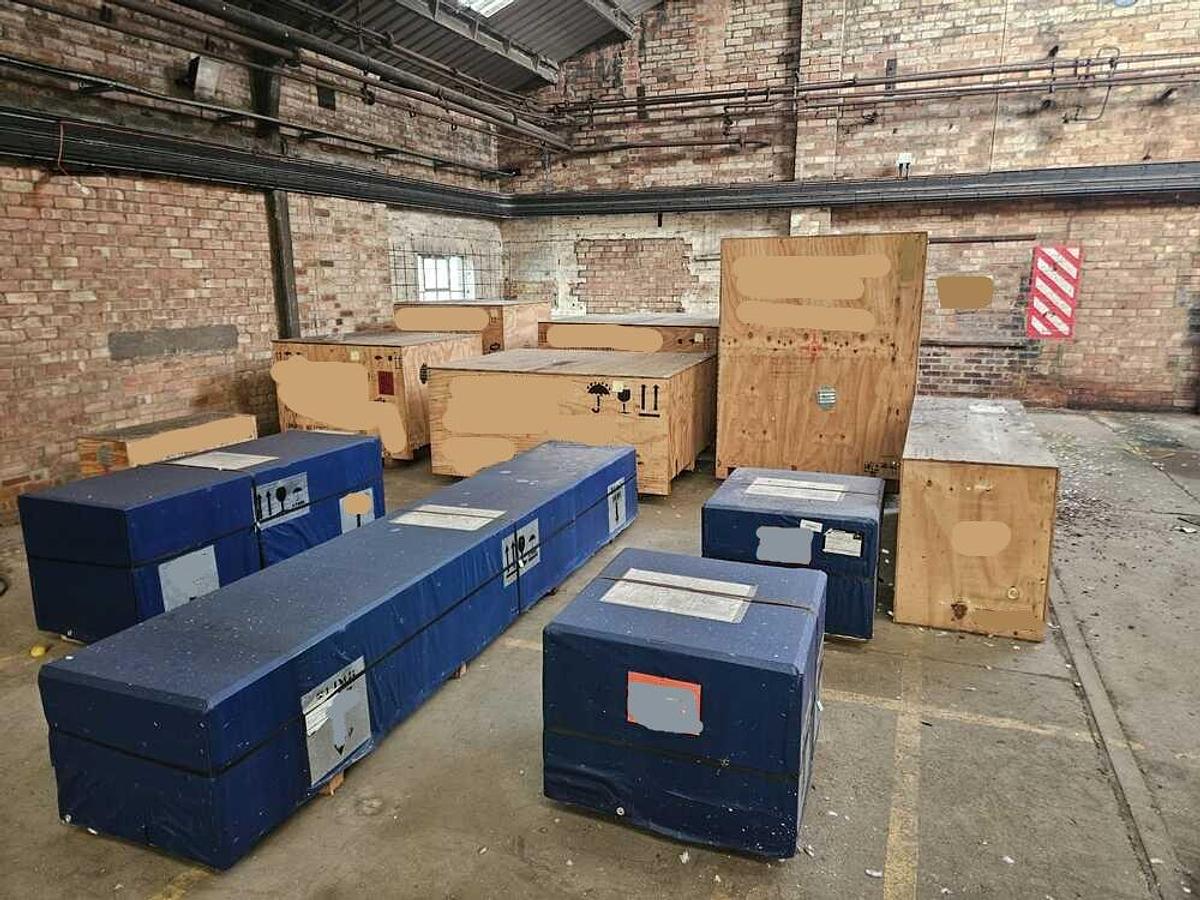

2022 SIEMENS SST-300

NEVER USED !!

Complete Siemens SST-300 Steam Generator

This turbine is a condensing steam turbine with a generator package.

Main details:

Model: Siemens SST-300

YOM: 2022.

Condition: still in ORIGIN BOXES

Technical details:

Nominal / Max. Output: 20 MW

Speed: 5314 rpm

Voltage: 11,000 volts

Frequency: 50 Hz

Inlet Steam: 37 barg, 376°C, 72.5 t/h

Inlet Steam: 18.9 barg, 348.8°C, 65.6 t/h

Exhaust Steam: 3.5 barg, 155°C, 53.64 t/h

Exhaust Steam: 0.093 bara, 44°C

Skid Dimensions (Turbine and Gearbox) Gears): 7,610 mm x 6,300 mm

Skid Weight: 65,500 kg

Dimensions with generator and condenser: 23,350 mm x 10,335 mm
